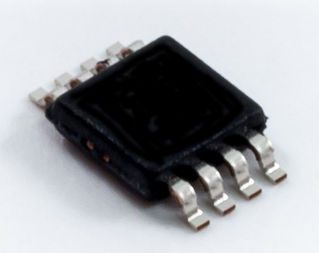

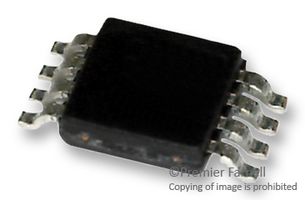

OPA2317IDGKT

TEXAS INSTRUMENTS  OPA2317IDGKT  运算放大器, 双路, 300 kHz, 2个放大器, 0.15 V/µs, 1.8V 至 5.5V, VSSOP, 8 引脚

The is a dual low offset Operational Amplifier with rail-to-rail input and output. The CMOS operational amplifier offers precision performance. This device is members of the zero-drift family of amplifier that use a proprietary auto-calibration technique to simultaneously provide low offset voltage 90µV maximum and near-zero drift over time and temperature at only 35µA maximum of quiescent current. The OPA317 family features rail-to-rail input and output in addition to near flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. This device is optimized for low-voltage operation as low as +1.8 and up to +5.5V.

.

Internal EMI/RFI filtering

.

20µV Typical low offset voltage

.

108dB Typical CMRR

.

35µA Maximum quiescent current

.

Green product and no Sb/Br
