OPA2541BM

双路高功率运算放大器 8-TO-3 -55 to 125

DESCRIPON

The OPA2541 is a dual power operational amplifier capable of operation from power supplies up to ±40V and output currents of 5A continuous. With two monolithic power amplifiers in a single package it provides unequaled functional density.

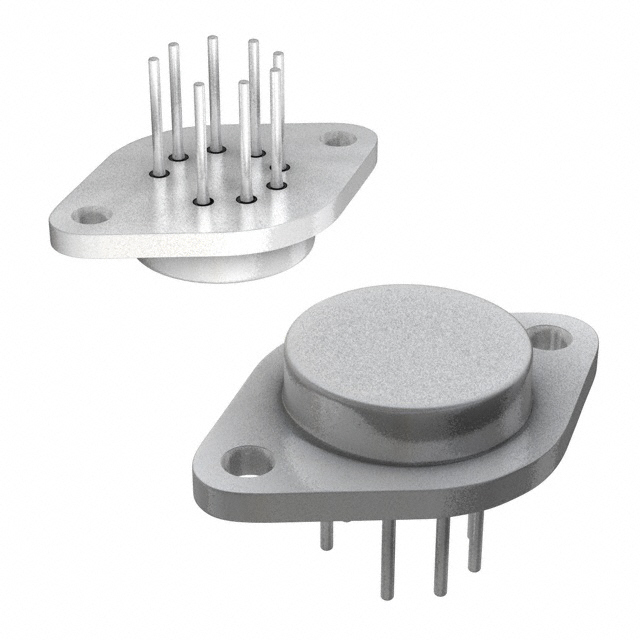

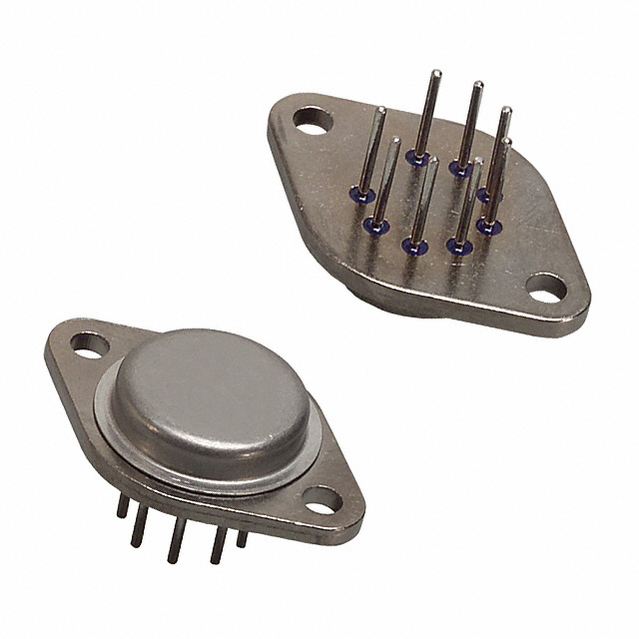

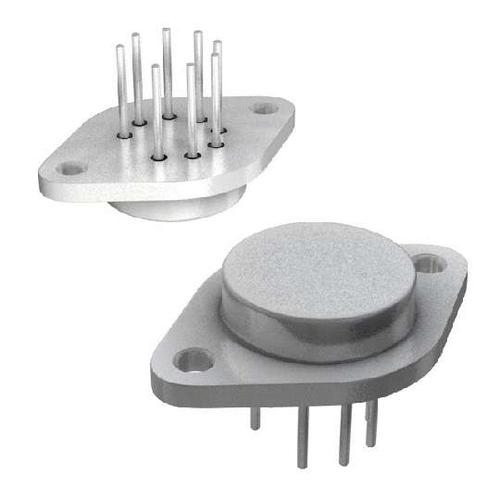

The industry-standard 8-pin TO-3 package is isolated from all internal circuitry allowing it to be mounted directly to a heat sink without insulators which degrade thermal performance. Internal circuitry limits output current to approximately 6A.

The OPA2541 is available in both industrial and military temperature range versions.

FEATURES

● OUTPUT CURRENTS TO 5A

● POWER SUPPLIES TO ±40V

● FET INPUT

● ELECTRICALLY ISOLATED CASE

APPLICATIONS

● MOTOR DRIVER

● SERVO AMPLIFIER

● SYNCRO/RESOLVER EXCITATION

● VOICE COIL DRIVER

● BRIDGE AMPLIFIER

● PROGRAMMABLE POWER SUPPLY

● AUDIO AMPLIFIER
