高功率单片运算放大器 8-TO-3
DESCRIPON
The OPA541 is a power operational amplifier capable of operation from power supplies up to ±40V and delivering continuous output currents up to 5A. Inter nal current limit circuitry can be user-programmed with a single external resistor, protecting the amplifier and load from fault conditions. The OPA541 is fabri cated using a proprietary bipolar/FET process.
FEATURES
●POWER SUPPLIES TO ±40V
●OUTPUT CURRENT TO 10A PEAK
●PROGRAMMABLE CURRENT LIMIT
●INDUSTRY-STANDARD PIN OUT
●FET INPUT
●TO-3 AND LOW-COST POWER PLASTIC PACKAGES
电源电压DC 30.0 V
供电电流 20 mA
电路数 1
通道数 1
共模抑制比 95 dB
输入补偿漂移 15.0 µV/K
带宽 1.60 MHz
转换速率 10.0 V/μs
增益频宽积 1.6 MHz
输入补偿电压 100 µV
输入偏置电流 4 pA
工作温度Max 85 ℃
工作温度Min -25 ℃
增益带宽 1.6 MHz
共模抑制比Min 95 dB
电源电压 20V ~ 70V
电源电压Max 70 V
电源电压Min 20 V
安装方式 Through Hole
引脚数 9

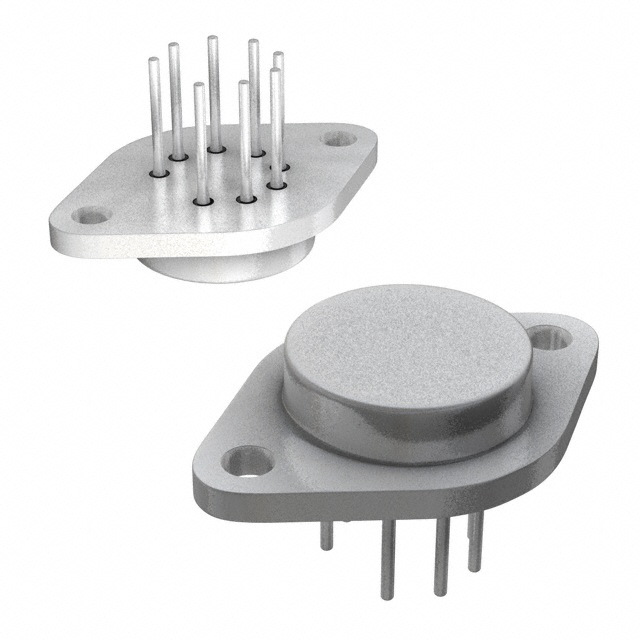

封装 TO-3-8
宽度 25.4 mm
封装 TO-3-8
工作温度 -25℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA541BM TI 德州仪器 | 当前型号 | 当前型号 |
OPA541AM 德州仪器 | 功能相似 | OPA541BM和OPA541AM的区别 |
OPA541SM 德州仪器 | 功能相似 | OPA541BM和OPA541SM的区别 |
OPA541SM-BI 德州仪器 | 功能相似 | OPA541BM和OPA541SM-BI的区别 |
