高速运算放大器 Low-Power Triple Current Feedback
The OPA3684 provides a new level of performance in low-power, wideband, current-feedback CFB amplifiers. This CFB_PLUS_ amplifier among the first to use an internally closed-loop input buffer stage that enhances performance significantly over earlier low-power CFB amplifiers. While retaining the benefits of very low power operation, this new architecture provides many of the benefits of a more ideal CFB amplifier. The closed-loop input stage buffer gives a very low and linearized impedance path at the inverting input to sense the feedback error current. This improved inverting input impedance retains exceptional bandwidth to much higher gains and improves harmonic distortion over earlier solutions limited by inverting input linearity. Beyond simple high-gain applications, the OPA3684 CFB_PLUS_ amplifier permits the gain setting element to be set with considerable freedom from amplifier bandwidth interaction. This allows frequency response peaking elements to be added, multiple input inverting summing circuits to have greater bandwidth, and low-power line drivers to meet the demanding requirements of studio cameras and broadcast video. The output capability of the OPA3684 also sets a new mark in performance for low-power current-feedback amplifiers. Delivering a full ±4Vp-p swing on ±5V supplies, the OPA3684 also has the output current to support > ±3Vp-p into 50. This minimal output headroom requirement is complemented by a similar 1.2V input stage headroom giving exceptional capability for single +5V operation.
The OPA3684s low 1.7mA/ch supply current is precisely trimmed at 25°C. This trim, along with low shift over temperature and supply voltage, gives a very robust design over a wide range of operating conditions. System power may be further reduced by using the optional disable control pin. Leaving this disable pin open, or holding it HIGH, gives normal operation. If pulled LOW, the OPA3684 supply current drops to less than 100µA/ch while the I/O pins go to a high impedance state.
供电电流 1.7 mA
电路数 3
通道数 3
输入补偿漂移 12.0 µV/K
带宽 250 MHz
转换速率 820 V/μs
增益频宽积 1.9 GHz
输入补偿电压 1.5 mV
输入偏置电流 5 µA
可用通道 S, D, Q, T
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 250 MHz
增益带宽 1.9 GHz
共模抑制比Min 51 dB
电源电压Max 12 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 14

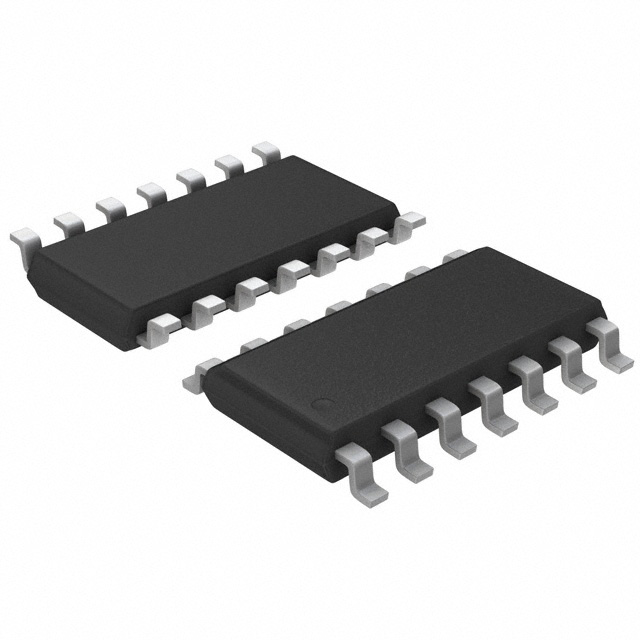

封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA3684ID TI 德州仪器 | 当前型号 | 当前型号 |
OPA3684IDRG4 德州仪器 | 完全替代 | OPA3684ID和OPA3684IDRG4的区别 |
SN10503D 德州仪器 | 类似代替 | OPA3684ID和SN10503D的区别 |
OPA3684IDR 德州仪器 | 类似代替 | OPA3684ID和OPA3684IDR的区别 |
