TEXAS INSTRUMENTS OPA137NA/250 运算放大器, 单路, 1 MHz, 1个放大器, 3.5 V/µs, ± 2.25V 至 ± 18V, SOT-23, 5 引脚
The is a FET-input Operational Amplifier designed for miniature applications. The input common-mode voltage range includes the positive supply-suitable for many single-supply applications. Single version has identical specifications for maximum design flexibility. OPA137 op amp is easy to use and free from phase inversion and overload problems found in some FET-input amplifier. High performance, including linearity, is maintained as the amplifiers swing to their specified limits. In addition, the combination of high slew rate 3.5V/µs and wide bandwidth 1MHz provide fast settling time assuring good dynamic response.
- .
- Input to positive supply
- .
- 5pA FET input
- .
- 1.5mV Low offset voltage
- .
- 220µA/channel Low quiescent current
- .
- Green product and no Sb/Br
供电电流 220 µA
电路数 1
通道数 1
针脚数 5
共模抑制比 70 dB
输入补偿漂移 15.0 µV/K
带宽 1 MHz
转换速率 3.50 V/μs
增益频宽积 1 MHz
输入补偿电压 2.5 mV
输入偏置电流 5 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 1 MHz
共模抑制比Min 70 dB
电源电压Max 36 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5

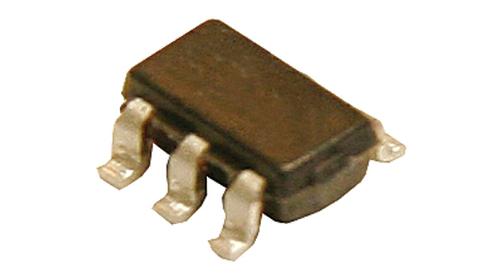

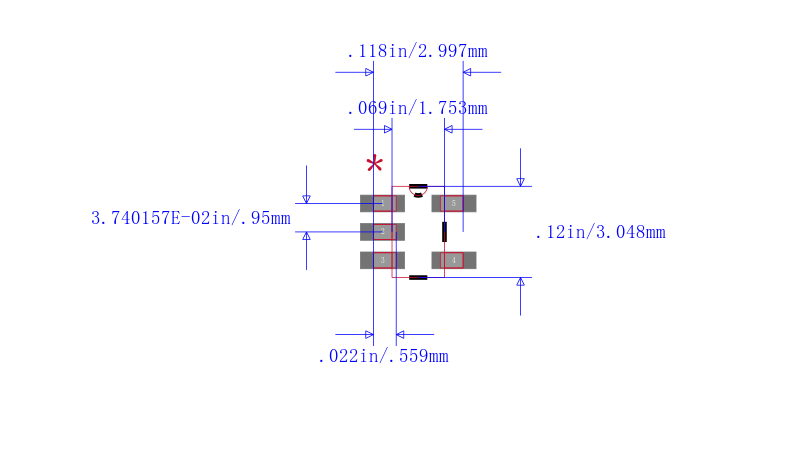

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA137NA/250 TI 德州仪器 | 当前型号 | 当前型号 |
OPA137NA/250G4 德州仪器 | 完全替代 | OPA137NA/250和OPA137NA/250G4的区别 |
OPA137N/250 德州仪器 | 类似代替 | OPA137NA/250和OPA137N/250的区别 |
OPA137NA/3K 德州仪器 | 类似代替 | OPA137NA/250和OPA137NA/3K的区别 |
