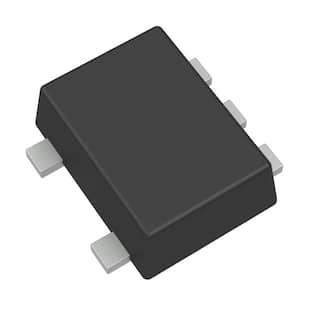

OPA170AIDRLT

36V单电源， SOT553 ，低功耗运算放大器 36V, Single-Supply, SOT553, Low-Power OPERATIONAL AMPLIFIERS

**DESCRIPON**

The OPA170, OPA2170 and OPA4170 OPAx170 are a family of 36V, single-supply, low-noise

operational amplifiers that feature micro packages with the ability to operate on supplies ranging from +2.7V ±1.35V to +36V ±18V. They offer good offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility.

**1****FEATURES**

**2**• **Supply Range: +2.7V to +36V, **±**1.35V to **±**18V**

.

*Low Noise: 19nV/**√**Hz**

.

*RFI Filtered Inputs**

.

*Input Range Includes the Negative Supply**

.

*Input Range Operates to Positive Supply**

.

*Rail-to-Rail Output**

.

*Gain Bandwidth: 1.2MHz**

.

*Low Quiescent Current: 110**µ**A per Amplifier**

.

*High Common-Mode Rejection: 120dB**

.

*Low Bias Current: 15pA max**

.

*Industry-Standard Packages:**

.

*8-Pin SOIC**

.

*8-Pin MSOP**

.

*14-Pin TSSOP**

.

*_micro_****Packages:**

.

*Single in 5-Pin SOT553**

.

*Dual in 8-Pin VSSOP**

**APPLICATIONS**

.

*Tracking Amplifier in Power Modules**

.

*Merchant Power Supplies**

.

*Transducer Amplifiers**

.

*Bridge Amplifiers**

.

*Temperature Measurements**

.

*Strain Gauge Amplifiers**

.

*Precision Integrators**

.

*Battery-Powered Instruments**

.

*Test Equipment**
