OPA358AIDCKTG4

高速运算放大器 3V Single Supply 80MHz High-Speed

DESCRIPON

The high-speed OPA358 amplifier is optimized for 3V single-supply operation. The output typically swings within 5mV of GND with a 150Ωload connected to GND. The input common-mode range includes GND and swings to within 1V of the positive power supply. The OPA358 offers excellent video performance: 0.5dB gain flatness is 25MHz, differential gain is 0.3%, and differential phase is

0.7°.

FEATURES

HIGH BANDWIDTH: 80MHz

HIGH SLEW RATE: 55V/µs

EXCELLENT VIDEO PERFORMANCE

  − 0.5dB GAIN FLATNESS: 25MHz

  − DIFFERENTIAL GAIN: 0.3%

  − DIFFERENTIAL PHASE: 0.7°

INPUT RANGE INCLUDES GROUND

RAIL-TO-RAIL OUTPUT

SHUTDOWN CURRENT: < 5µA

LOW QUIESCENT CURRENT: 5.2mA

SINGLE-SUPPLY OPERATING RANGE: +2.7V to +3.3V

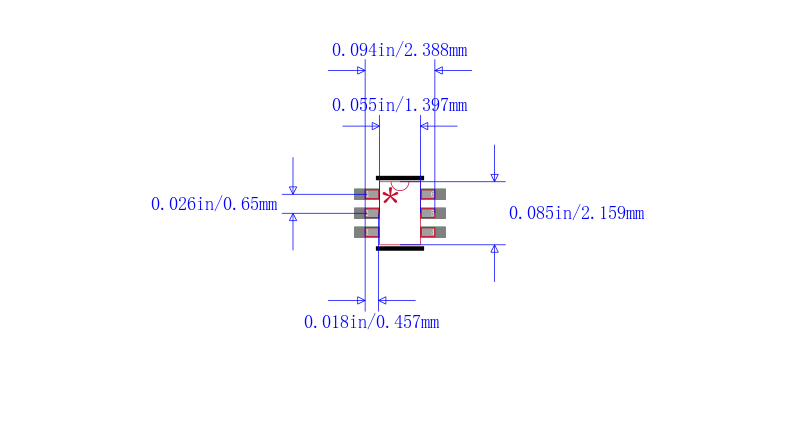

MicroSIZE PACKAGE: SC70-6

APPLICATIONS

DIGITAL STILL CAMERAS

CAMERA PHONES

DIGITAL MEDIA PLAYERS

DIGITAL VIDEO CAMERAS

SET-TOP-BOX VIDEO FILTERS

OPTICAL POWER MONITORING

TRANSIMPEDANCE AMPLIFIERS

AUTOMATIC TEST EQUIPMENT
