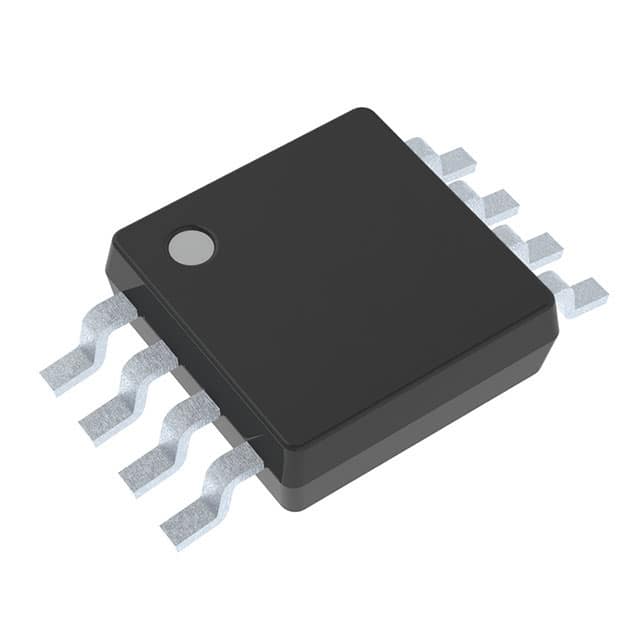

低功耗,低噪声和失真,双极输入音频运算放大器 Low-Power, Low Noise and Distortion, Bipolar-Input AUDIO OPERATIONAL AMPLIFIERS
音频 放大器 电路 满摆幅 8-VSSOP
得捷:
IC OPAMP AUDIO 22MHZ RRO 8VSSOP
立创商城:
OPA1662AIDGK
德州仪器TI:
Dual SoundPlus™ low noise 3.3nV/rtHz and distortion -124dB, wide bandwidth 22MHz audio op amp
贸泽:
Audio Amplifiers Low-Pwr,Low-Noise & Distort,Aud Op Amp
艾睿:
The large amount of gain, or amplification, produced by this general purpose amplifier OPA1662AIDGK OP amp from Texas Instruments make it a commonly used component in nearly all electronics today. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±1.5 V and maximum of ±18 V. This op amp has a temperature range of -40 °C to 85 °C. It has 2 channels per chip. This device uses one or two power supplies.
安富利:
OP Amp Dual GP R-R O/P ±18V/36V 8-Pin VSSOP Tube
Chip1Stop:
OP Amp Dual GP R-R O/P ±18V/36V 8-Pin VSSOP Tube
Verical:
Audio Amp Speaker 4-CH Stereo Class-AB 8-Pin VSSOP Tube
Win Source:
IC AUDIO 2 CIRCUIT 8VSSOP / Audio Amplifier 2 Circuit Rail-to-Rail 8-VSSOP
供电电流 1.5 mA
电路数 2
通道数 2
共模抑制比 86 dB
输入补偿漂移 2.00 µV/K
转换速率 17.0 V/μs
增益频宽积 20 MHz
过温保护 No
输入补偿电压 500 µV
输入偏置电流 600 nA
工作温度Max 85 ℃
工作温度Min 40 ℃
增益带宽 20 MHz
共模抑制比Min 86 dB
电源电压Max 36 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA1662AIDGK TI 德州仪器 | 当前型号 | 当前型号 |
OPA1662AIDGKR 德州仪器 | 类似代替 | OPA1662AIDGK和OPA1662AIDGKR的区别 |
