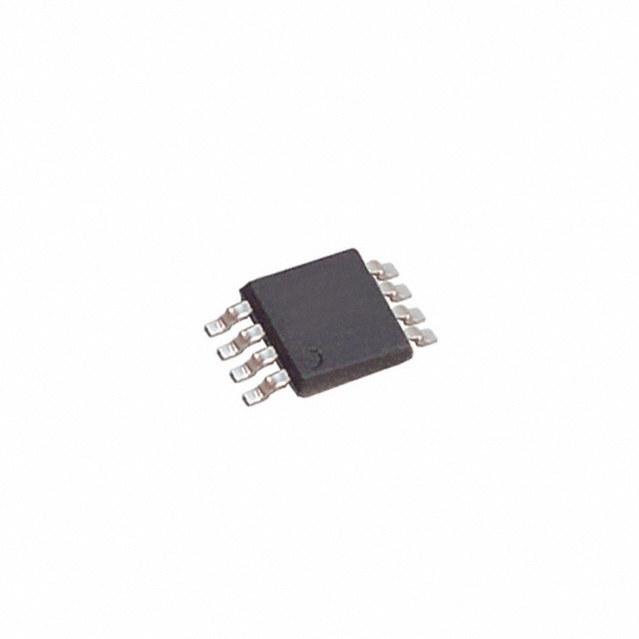

TEXAS INSTRUMENTS OPA2244EA/250G4 运算放大器, 双路, 430 kHz, 2个放大器, 0.16 V/µs, ± 1.1V 至 ± 18V, MSOP, 8 引脚
The is a dual MicroPower Operational Amplifier designed for very low quiescent current 50µA/channel, yet achieves excellent bandwidth. The dual version feature completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. The OPA244 series is easy to use and free from phase inversion and overload problems found in some other op amps. This amplifier is stable in unity gain and excellent performance is maintained as they swing to their specified limits. The input common-mode voltage range includes ground-ideal for many single supply applications.
- .
- Continuous output short-circuit
- .
- 50µA/channel MicroPOWER
- .
- 2000V ESD capability
- .
- Green product and no Sb/Br
电源电压DC 36.0 V
供电电流 40 µA
电路数 2
通道数 2
针脚数 8
共模抑制比 72 dB
输入补偿漂移 4.00 µV/K
带宽 430 kHz
转换速率 100 mV/μs
增益频宽积 0.43 MHz
输入补偿电压 700 µV
输入偏置电流 10 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 0.43 MHz
共模抑制比Min 72 dB
电源电压Max 36 V
电源电压Min 2.2 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
长度 3 mm
宽度 3 mm
高度 0.97 mm
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA2244EA/250G4 TI 德州仪器 | 当前型号 | 当前型号 |
OPA2244EA/250E4 德州仪器 | 完全替代 | OPA2244EA/250G4和OPA2244EA/250E4的区别 |
OPA2244EA/250 德州仪器 | 类似代替 | OPA2244EA/250G4和OPA2244EA/250的区别 |
OPA2244EA/2K5 德州仪器 | 类似代替 | OPA2244EA/250G4和OPA2244EA/2K5的区别 |
