OPA691IDR

宽带电流反馈运算放大器，具有禁用 Wideband, Current Feedback OPERATIONAL AMPLIFIER With Disable

Wideband, Current Feedback OPERAONAL AMPLIFIER With Disable

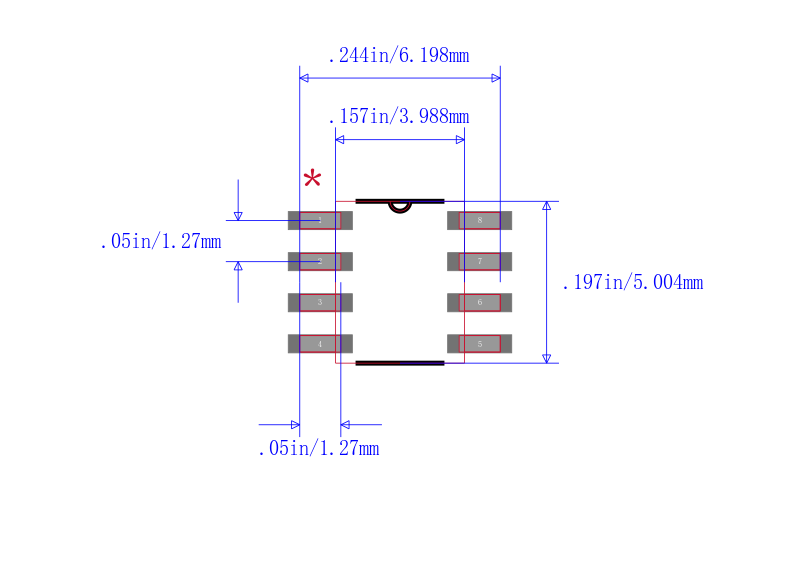

DESCRIPTION

The OPA691 sets a new level of performance for broadband current feedback op amps. Operating on a very low 5.1mA supply current, the OPA691 offers a slew rate and output power normally associated with a much higher supply current. A new output stage architecture delivers a high output current with minimal voltage headroom and crossover distortion. This gives exceptional single-supply operation. Using a single +5V supply, the OPA691 can deliver a 1V to 4V output

swing with over 150mA drive current and 190MHz band width. This combination of features makes the OPA691 an ideal RGB line driver or single-supply Analog-to-Digital Converter ADC input driver.

FEATURES

●FLEXIBLE SUPPLY RANGE:

   +5V to +12V Single-Supply

   ±2.5V to ±6V Dual-Supply

●UNITY-GAIN STABLE: 280MHz G = 1

●HIGH OUTPUT CURRENT: 190mA

●OUTPUT VOLTAGE SWING: ±4.0V

●HIGH SLEW RATE: 2100V/µs

●LOW dG/dφ: 0.07%/0.02°

●LOW SUPPLY CURRENT: 5.1mA

●LOW DISABLED CURRENT: 150µA

●WIDEBAND +5V OPERATION: 190MHz G = +2

APPLICATIONS

●xDSL LINE DRIVER

●BROADBAND VIDEO BUFFERS

●HIGH-SPEED IMAGING CHANNELS

●PORTABLE INSTRUMENTS

●ADC BUFFERS

●ACTIVE FILTERS

●WIDEBAND INVERTING SUMMING

●HIGH SFDR IF AMPLIFIER
