宽带电压反馈运算放大器,具有禁用 Wideband, Voltage Feedback OPERATIONAL AMPLIFIER With Disable
Increase functionality to your instrumentation with this voltage feedback amplifier OP amp from Texas Instruments. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±2.5 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a single channel per chip. This device is made with bicom technology. This device uses one or two power supplies.
输出电流 160mA @5V
供电电流 5.5 mA
电路数 1
通道数 1
共模抑制比 58 dB
输入补偿漂移 10.0 µV/K
带宽 300 MHz
转换速率 1.80 kV/μs
增益频宽积 300 MHz
输入补偿电压 1 mV
输入偏置电流 3 µA
可用通道 D, T
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 500 MHz
增益带宽 300 MHz
共模抑制比Min 58 dB
安装方式 Surface Mount
引脚数 6

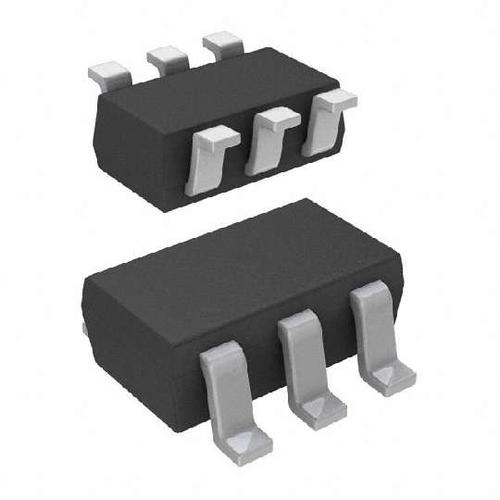

封装 SOT-23-6
长度 2.9 mm
宽度 1.6 mm
高度 1.3 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA690IDBVR TI 德州仪器 | 当前型号 | 当前型号 |
OPA690IDBVT 德州仪器 | 类似代替 | OPA690IDBVR和OPA690IDBVT的区别 |
OPA690IDBVTG4 德州仪器 | 类似代替 | OPA690IDBVR和OPA690IDBVTG4的区别 |
