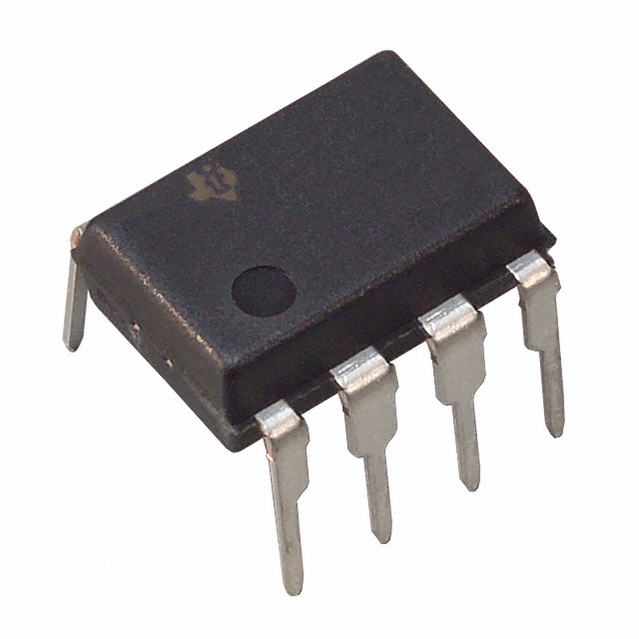

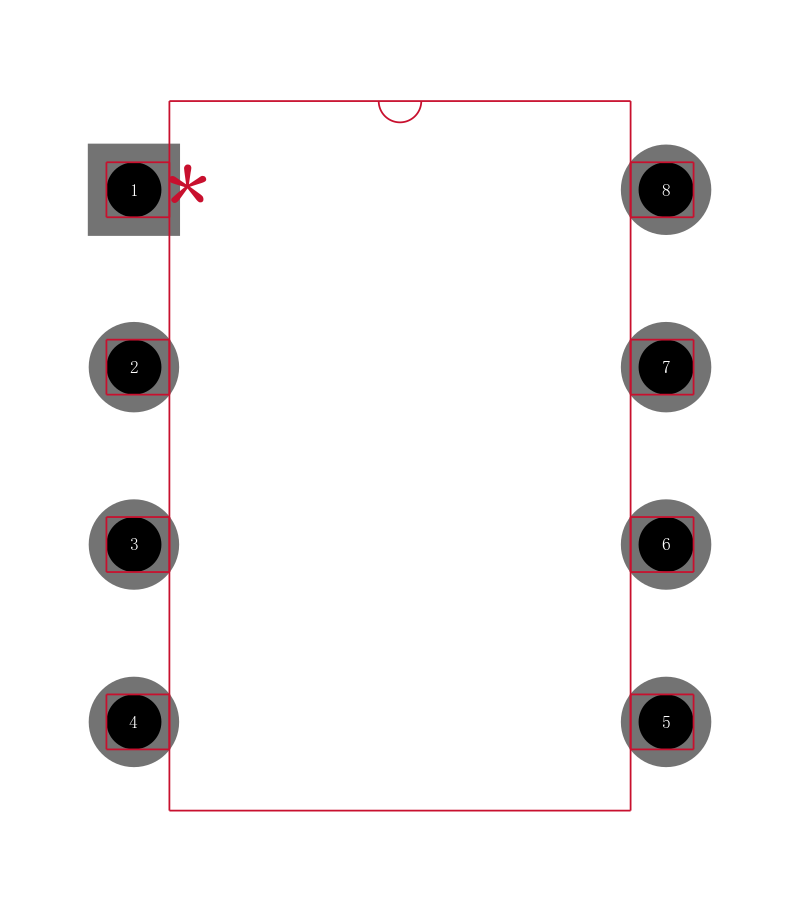

OPA350PAG4

High-Speed, Single-Supply, ail-to- ail Operational Amplifiers MicroAmplifierTM Series 8-PDIP -40℃ to 85℃

Description

The OPA350 series of rail-to-rail CMOS operational amplifiers are optimized for low voltage, single-supply operation. Rail-to-rail input and output, low noise 5 nV/√Hz, and high speed operation 38 MHz, 22 V/μs make the amplifiers ideal for driving sampling Analog to-Digital A/D converters. They are also suited for cell phone PA control loops and video processing 75-Ω drive capability, as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility.

The OPA350 series operates on a single supply as low as 2.5 V, with an input common-mode voltage range that extends 300 mV below ground and 300 mV above the positive supply. Output voltage swing is to within 10 mV of the supply rails, with a 10-kΩ load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.

Features

• Rail-to-Rail Input

• Rail-to-Rail Output Within 10 mV

• Wide Bandwidth: 38 MHz

• High Slew Rate: 22 V/μs

• Low Noise: 5 nV/√Hz

• Low THD+Noise: 0.0006%

• Unity-Gain Stable

• MicroSize Packages

• Single, Dual, and Quad

Applications

• Cell Phone PA Control Loops

• Driving A/D Converters

• Video Processing

• Data Acquisition

• Process Controls

• Audio Processing

• Communications

• Active Filters

• Test Equipment
