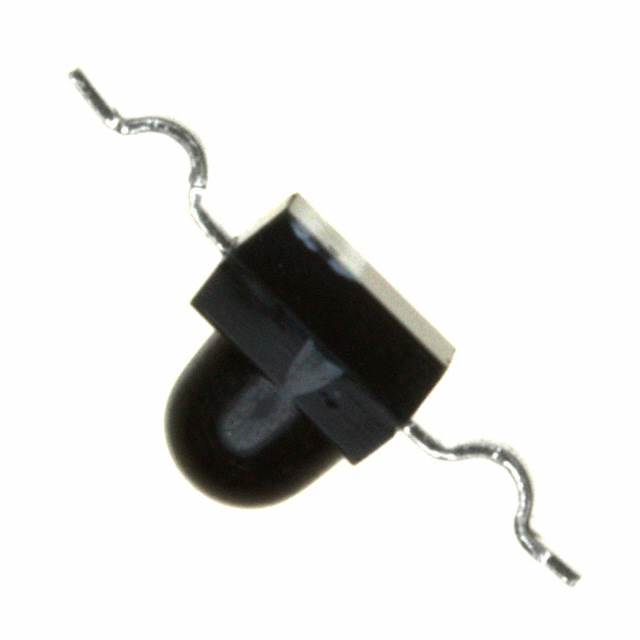

Phototransistor Chip Silicon 935nm 2Pin SMD
Phototransistors 935nm Top View 2-SMD, Yoke Bend
得捷:
SENSOR PHOTO 935NM TOP VIEW 2SMD
贸泽:
Phototransistors Phototrans Yoke
艾睿:
Phototransistor Chip Silicon 935nm 2-Pin SMD
Chip1Stop:
Phototransistor Chip Silicon 935nm 2-Pin SMD
Verical:
Phototransistor Chip Silicon 935nm 2-Pin SMD
电源电压DC 30.0 V
工作电压 30.0 V
波长 935 nm
视角 25°
峰值波长 935 nm
极性 N-Channel, NPN
耗散功率 130 mW
功耗 130 mW
上升时间 15.0 µs
击穿电压集电极-发射极 30 V
额定功率Max 130 mW
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 130 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 2.5 mm
宽度 2 mm
高度 2.7 mm
封装 SMD-2
材质 Silicon
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
