OPTEK TECHNOLOGY OP599A 光电三极管, T-1 3/4

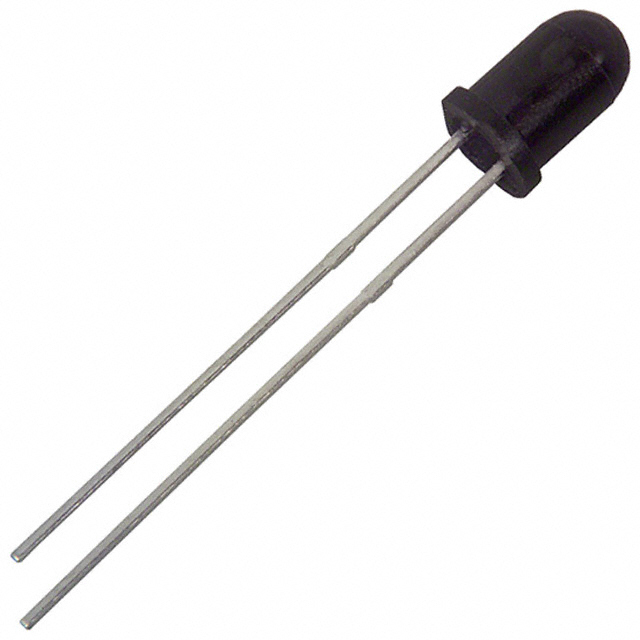

The is a Silicon NPN Phototransistor mounted in a dark blue plastic injection moulded shell package, with a narrow receiving angle that provides excellent on-axis coupling and optical/mechanical axis alignment. The shell also provides excellent optical lens surface, control of chip placement and consistency of the outside package dimensions. The OP599 series sensor is 100% production tested for close correlation with OPTEK GaAIAs emitters.
- .
- Excellent optical lens surface
- .
- Excellent chip placement
- .
- 0.75" Lead length
电源电压DC 5.00 V
工作电压 5.00 V
针脚数 2
波长 890 nm
视角 20°
峰值波长 890 nm
极性 NPN
耗散功率 100 mW
功耗 100 mW
击穿电压集电极-发射极 30 V
额定功率Max 100 mW
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 6.22 mm
宽度 6.22 mm
高度 8.89 mm
脚长度 19.1 mm
封装 T-1
材质 Silicon
工作温度 -40℃ ~ 100℃ TA
外壳材质 Plastic
产品生命周期 Active
包装方式 Each
制造应用 Portable Devices, Sensing & Instrumentation, 传感与仪器, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OP599A TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OP550A TT Electronics/Optek Technology | 类似代替 | OP599A和OP550A的区别 |
OP593A TT Electronics/Optek Technology | 功能相似 | OP599A和OP593A的区别 |
OP555A TT Electronics/Optek Technology | 功能相似 | OP599A和OP555A的区别 |
