OP593 系列 890 nm 视角 130° 50 mA NPN 硅 光电晶体管 -TO-18

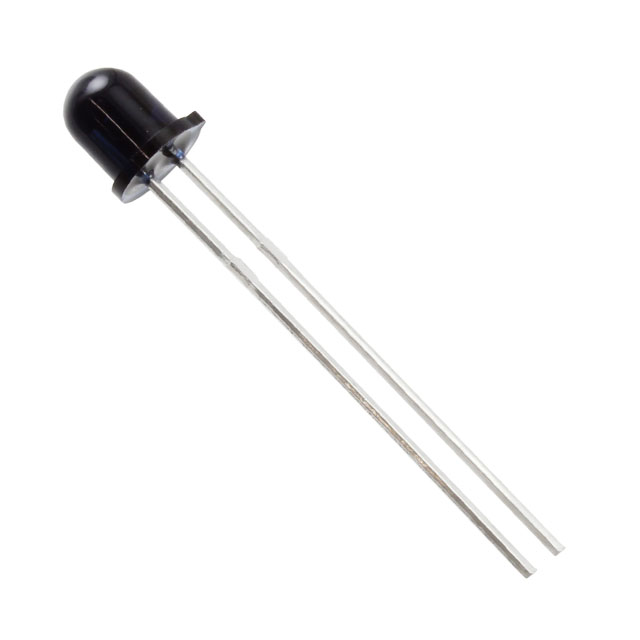

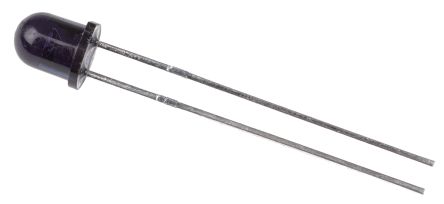

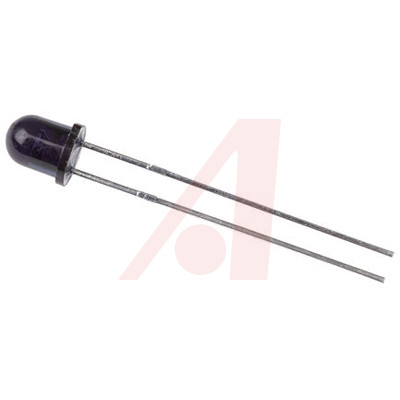

OP593 and OP598 Series Phototransistors
The OP593 and OP598 series, from Optek Technology Inc., are a family of NPN silicon phototransistors. They are in dark blue plastic TO-18 equivalent packages. They offer a wide receiving angle in a variety of different sensitivity ranges.
Features of the OP593 and OP598 phototransistors:
Through-hole mounting
TO-18 equivalent package
Dark blue lens
Wide receiving angle
Operating temperature: -40 to +100 °C
### 红外,Optek
通道数 1
针脚数 2
波长 890 nm
峰值波长 890 nm
耗散功率 250 mW
击穿电压集电极-发射极 30 V
额定功率Max 250 mW
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
安装方式 Through Hole
引脚数 2
封装 TO-18-2
长度 5.72 mm
宽度 5.72 mm
高度 7.62 mm
封装 TO-18-2
材质 Silicon
工作温度 -40℃ ~ 100℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
