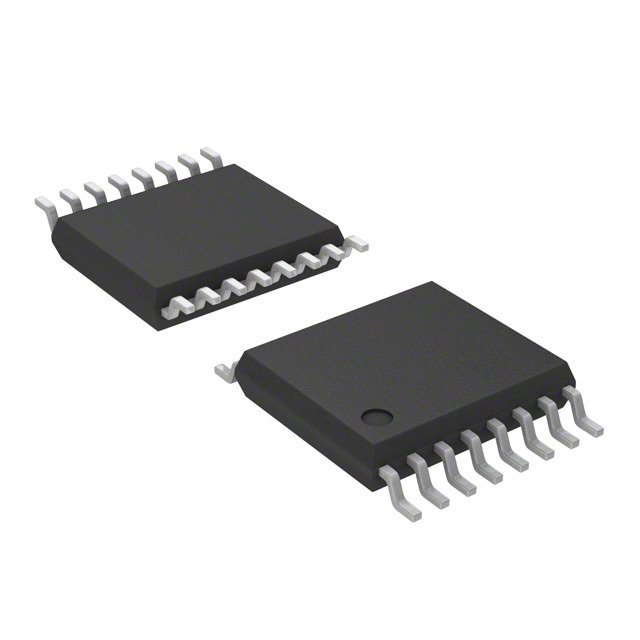

OPA4322SAIPW

TEXAS INSTRUMENTS  OPA4322SAIPW  运算放大器, 四路, 20 MHz, 4个放大器, 10 V/µs, 1.8V 至 5.5V, TSSOP, 16 引脚

The is a quad low noise CMOS Operational Amplifier with rail-to-rail input and output. It is optimized for low-power and single-supply applications. Specified over a wide supply range of 1.8 to 5.5V, the low quiescent current of only 1.5mA per channel makes this device well-suited for power-sensitive applications. The combination of very low noise 8.5nV/√Hz at 1kHz, high gain-bandwidth 20MHz and fast slew rate 10V/µs make the OPA322 family ideal for a wide range of applications, including signal conditioning and sensor amplification requiring high gains.

.

Unity-gain stable

.

0.0005% Low THD+N

.

2mV Maximum offset voltage

.

1.5mA/channel Supply current

.

0.1µA/channel Shutdown

.

Green product and no Sb/Br
