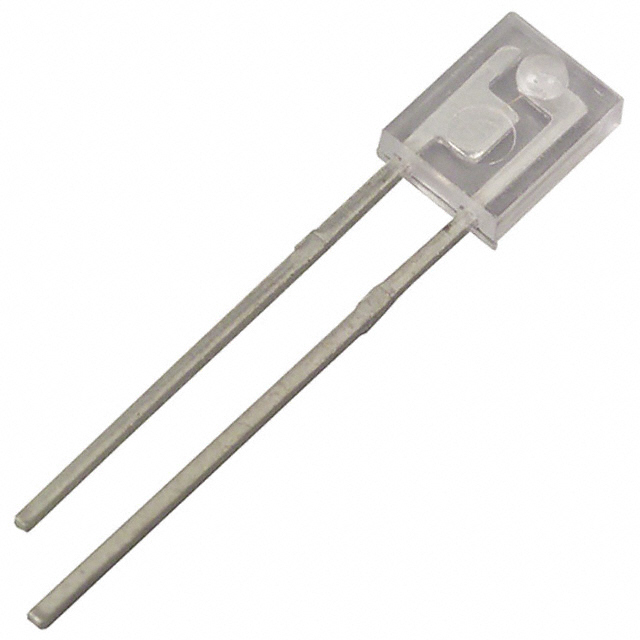

OPTEK TECHNOLOGY OP550C 光电三极管,侧面发光
The is a Silicon NPN Phototransistor moulded in an epoxy package with a wide receiving angle that provides relatively even reception over a large area. The OP550 has an external lens in a clear epoxy package. This device is 100% production tested using infrared light for close correlation with OPTEK"s GaAs and GaAIAs emitters. This sensor is mechanically and spectrally matched to the OP140, OP142, OP145, OP240 and OP245 series of infrared emitting diodes.
- .
- Middle sensitivity level
- .
- Wide receiving angle
- .
- Side-looking package for space limited applications
- .
- Ideal for PCB mounting
针脚数 2
波长 935 nm
视角 60°
峰值波长 935 nm
极性 NPN
耗散功率 100 mW
功耗 100 mW
击穿电压集电极-发射极 30 V
额定功率Max 100 mW
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1
长度 4.57 mm
宽度 2.54 mm
高度 5.84 mm
脚长度 12.7 mm
封装 T-1
材质 Silicon
工作温度 -40℃ ~ 100℃ TA
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Communications & Networking, 便携式器材, Automation & Process Control, 传感与仪器, Sensing & Instrumentation, 通信与网络, 自动化与过程控制, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OP550C TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OP555B TT Electronics/Optek Technology | 功能相似 | OP550C和OP555B的区别 |
OP555C TT Electronics/Optek Technology | 功能相似 | OP550C和OP555C的区别 |
