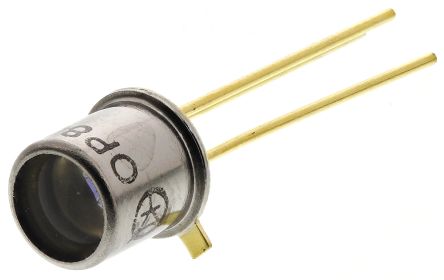

OPTEK TECHNOLOGY OP802WSL 光电三极管, TO-18
OP800WSL, OP801WSL and Series Phototransistors
This family of NPN silicon phototransistors, from Optek Technology Inc., are hermetically sealed devices. They are in standard TO-18 metal can packages which enable high power dissipation and make them suitable for applications in harsh environments.
Features of the OP800WSL, OP801WSL and OP802WSL phototransistors:
TO-18 metal can package
Hermetically sealed
Through-hole mounting
Wide receiving angle
Range of different sensitivities
Operating temperature: -65 to +125 °C
### 红外,Optek
额定电压DC 30.0 V
输出电压 ≤30.0 V
通道数 1
针脚数 3
波长 890 nm
视角 75°
极性 NPN
耗散功率 250 mW
功耗 250 mW
上升时间 7000 ns
击穿电压集电极-发射极 30 V
额定功率Max 250 mW
下降时间 7000 ns
下降时间Max 7000 ns
上升时间Max 7000 ns
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 250 mW
安装方式 Through Hole
引脚数 3
封装 TO-18-3
长度 5.84 mm
宽度 5.84 mm
高度 5.13 mm
脚长度 12.7 mm
封装 TO-18-3
材质 Silicon
工作温度 -65℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 ECL99
