OPTEK TECHNOLOGY OP830SL 光电开关
**Optek Darlington Phototransistor**

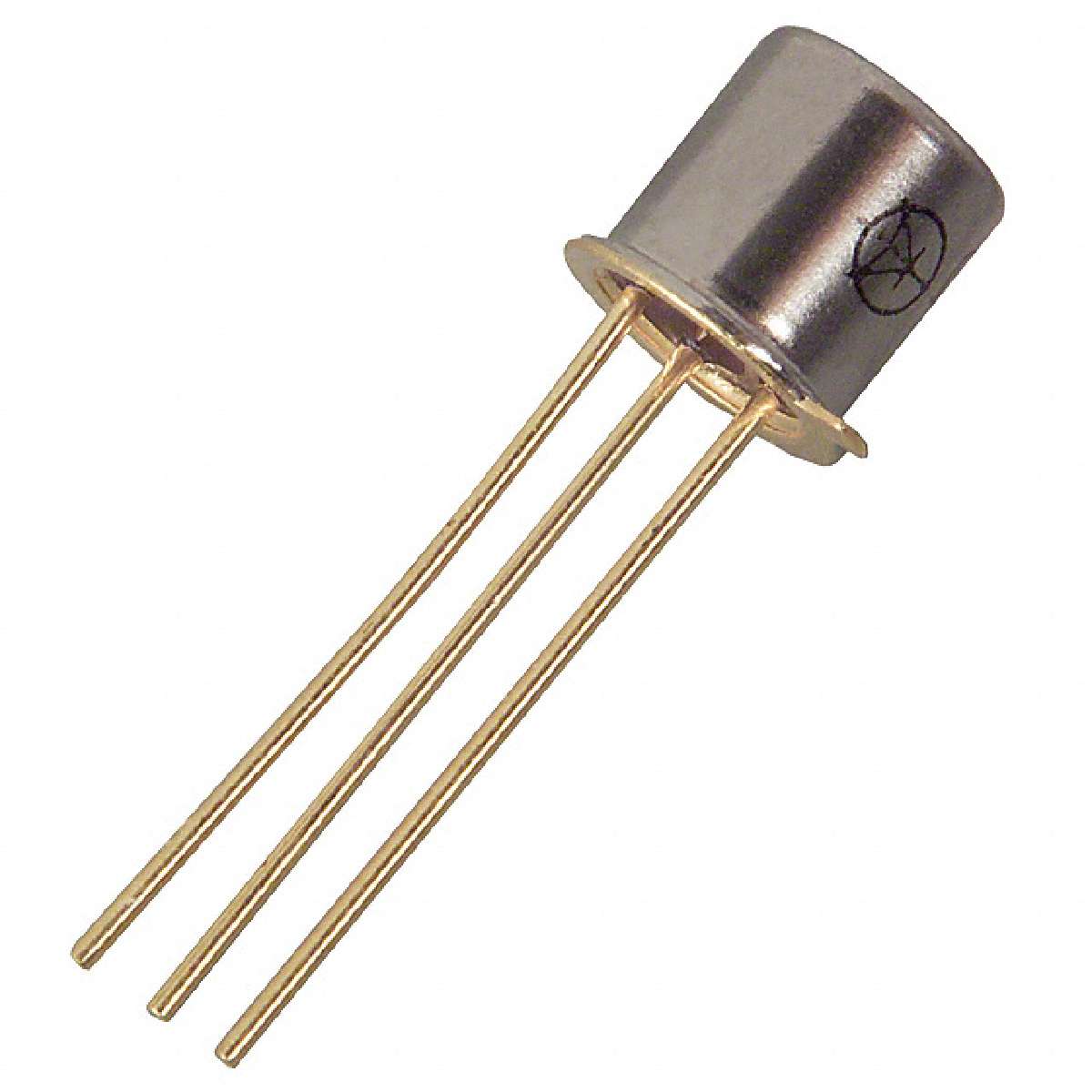

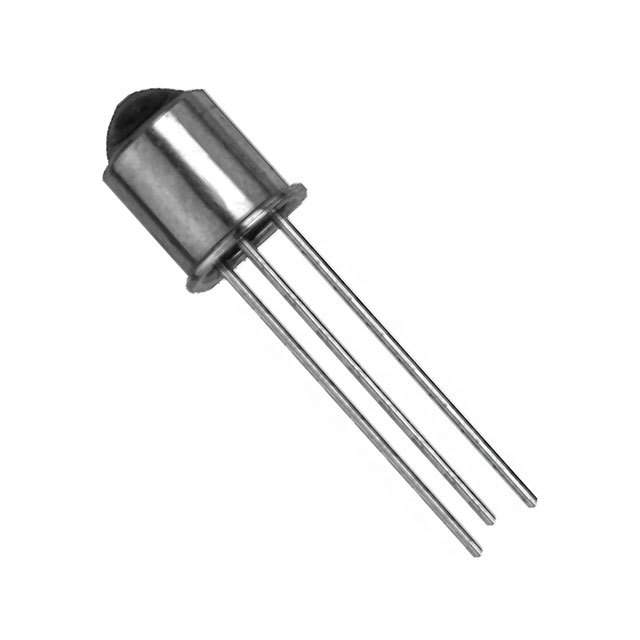

Range of NPN Silicon Photodarlington transistors from Optek offer a hermetically sealed TO-18 package. Designed with a narrow receiving angle, providing excellent on-axis coupling.
得捷:
SENSOR PHOTO TOP VIEW TO206AA
贸泽:
Phototransistors Photodarlington
e络盟:
光电开关
艾睿:
Photodarlington Chip Silicon 850nm 3-Pin TO-18 Bag
Allied Electronics:
PHOTODARLINGTON SILICON NPN TO18
Chip1Stop:
Photodarlington Chip Silicon 850nm 3-Pin TO-18
Verical:
Photodarlington Chip Silicon 850nm 3-Pin TO-18 Bag
Newark:
# OPTEK TECHNOLOGY OP830SL Phototransistor, 250 mW, 3 Pins, TO-18
针脚数 3
视角 25°
峰值波长 850 nm
极性 NPN
耗散功率 250 mW
功耗 250 mW
击穿电压集电极-发射极 15 V
额定功率Max 250 mW
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 250 mW
安装方式 Through Hole
引脚数 3
封装 TO-18-2
封装 TO-18-2
材质 Silicon
工作温度 -65℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OP830SL TT Electronics/Optek Technology | 当前型号 | 当前型号 |
SD5410-003 霍尼韦尔 | 功能相似 | OP830SL和SD5410-003的区别 |
L14F1 飞兆/仙童 | 功能相似 | OP830SL和L14F1的区别 |
