光学开关(透射型,光电IC输出) Slotted Opt Switch Photologic

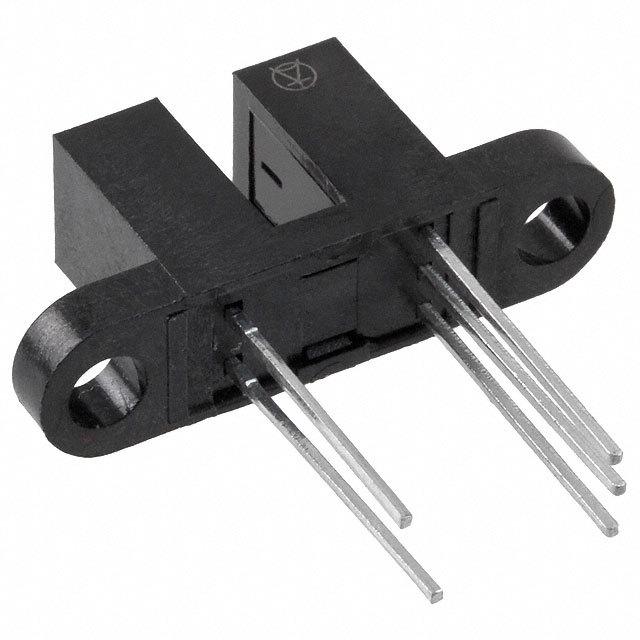

**OPB960, OPB970, OPB980 and OP990 Photologic Series Slotted Optical Switches**
This family of Photologic® slotted optical switches, from Optek Technology, include a variety of options from a standard housing. These non-contact slotted optical switches have a range of different slot widths, output logic states, output driver circuits, aperture widths, aperture surfaces and mounting tab locations. There is also a combination of PCB mounted or wire lead options. The device housing is an opaque plastic which reduces sensitivity to both visible and near IR light that could effect operation. The devices with a covered aperture offer protection against dust whilst open aperture offers better protection against ambient light interference. Suitable applications for the OPB960, OPB970, OPB980 and OPB990 slotted optical switches include; speed/direction indication, rotary encoders, mechanical switch replacement, mechanical limit indication, printers and sliding door automotive.
供电电流 15 mA
通道数 1
波长 890 nm
峰值波长 890 nm
耗散功率 300 mW
上升时间 70 ns
正向电流 40 mA
正向电流Max 40 mA
下降时间 70 ns
下降时间Max 70 ns
上升时间Max 70 ns
工作温度Max 70 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
电源电压 4.75V ~ 5.25V
安装方式 Through Hole
引脚数 5
封装 BAG
长度 24.63 mm
宽度 6.35 mm
高度 10.8 mm
封装 BAG
工作温度 -40℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPB972T55 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
OPB972T51 TT Electronics/Optek Technology | 完全替代 | OPB972T55和OPB972T51的区别 |
OPB972T11 TT Electronics/Optek Technology | 完全替代 | OPB972T55和OPB972T11的区别 |
OPB472T11 TT Electronics/Optek Technology | 功能相似 | OPB972T55和OPB472T11的区别 |
