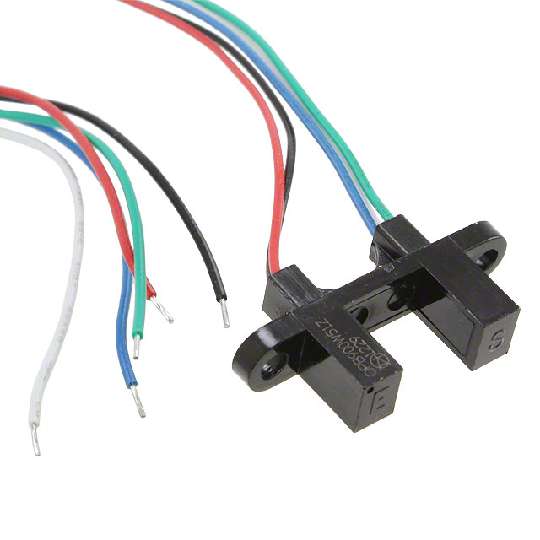

OPB912W55Z

40 mA 1.7 Vf 9.5 mm 间隙 Photologic® 开槽 光学开关

Description:

The OPB900- OPB913series of Photologic® Integrated Circuit Switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.375” 9.5mm wide slot, a user can specify the type and polarity of the TTL output and the type of shell material.

Electrical output can be specified as either TTL Totem Polebuffered or TTL Open Collector, either of which can be supplied with an inverted output polarity.

All versions have the added stability of hysteresis built into the amplification circuitry.

Features:

• 0.375” 9.5 mm wide gap

• Choice of logical output configurations

• Choice of opaque or IR transmissive housing material

• Choice of PCBoard or 26 AWG, UL rated wire

• Data rates to 250 kBaud

Applications:

• Mechanical switch replacement

• Speed indication tachometer

• Mechanical limit indication

• Edge sensing

• Object sensing
