OPA211IDGKR

1.1nV / A ???? Hz的噪声，低功耗，小型精密运算放大器DFN- 8封装 1.1nV/√Hz Noise, Low Power, Precision Operational Amplifier in Small DFN-8 Package

DESCRIPON

The OPA211 series achieves very low 1.1nV/√Hz noise density with a supply current of only 3.6mA. It also offers rail-to-rail output swing, which helps to maximize dynamic range. The OPA211 series’ extremely low voltage and current noise, high speed and wide output swing make it an excellent choice as a loop filter amplifier in PLL applications.

FEATURES

• LOW-VOLTAGE NOISE: 1.1nV/√Hz at 1kHz

• 100nVPP INPUT VOLTAGE NOISE, 0.1Hz–10Hz

• LOW OFFSET VOLTAGE: 100µV max

• LOW OFFSET VOLTAGE DRIFT: 0.2µV/°C typ

• LOW SUPPLY CURRENT: 3.6mA/Ch

• UNITY GAIN STABLE

• GAIN BANDWIDTH PRODUCT: 80MHz G = 100

• SLEW RATE: 27V/µs

• WIDE SUPPLY RANGE: ±2.25V to ±18V, +4.5V to +36V

• RAIL-TO-RAIL OUTPUT

• OUTPUT CURRENT: 30mA

• SHUTDOWN: 20µA max

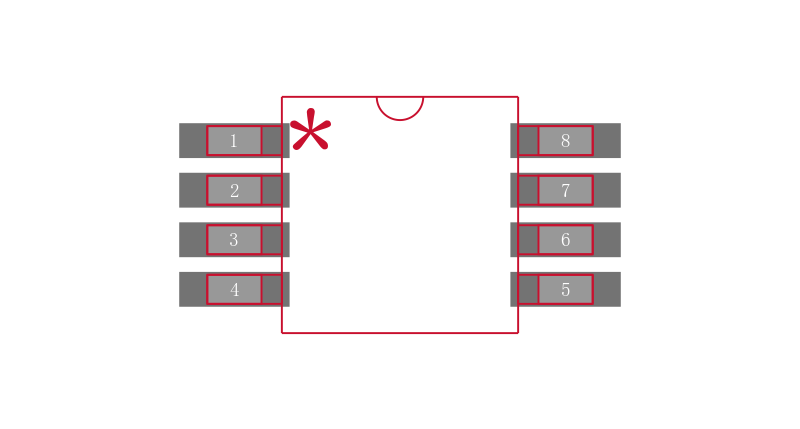

• AVAILABLE IN TINY DFN-8 3x3mm, MSOP-8, SO-8

APPLICATIONS

• PLL LOOP FILTER

• LOW-NOISE, LOW-POWER SIGNAL PROCESSING

• HIGH-PERFORMANCE ADC DRIVERS

• HIGH-PERFORMANCE DAC OUTPUT AMPLIFIER

• ACTIVE FILTERS

• LOW-NOISE INSTRUMENTATION AMPS

• ULTRASOUND AMPLIFIERS

• PROFESSIONAL AUDIO PREAMPLIFIERS

• LOW-NOISE FREQUENCY SYNTHESIZERS

• INFRARED DETECTOR AMPLIFIERS

• HYDROPHONE AMPLIFIERS

• MEDICAL
