OPA452FAKTWTG3

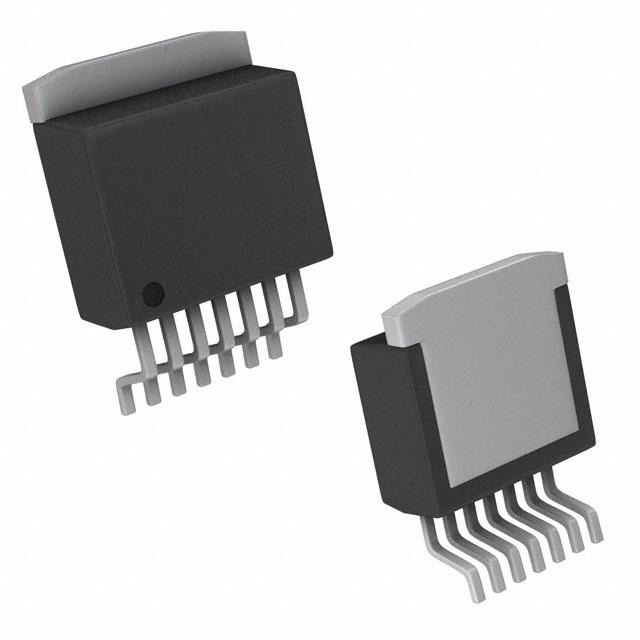

80V、50mA 运算放大器，单位增益稳定，带宽为 1.8MHz 7-DDPAK/TO-263 -40 to 125

DESCRIPON

The OPA452 and OPA453 are low-cost operational amplifiers with high-voltage 80V and high-current capabilities 50mA. The OPA452 is unity-gain stable and has a gain bandwidth product of 1.8MHz, whereas the OPA453 is optimized for gains greater than 5 and has a 7.5MHz bandwidth.

FEATURES

●WIDE POWER-SUPPLY RANGE: ±10V to ±40V

●HIGH OUTPUT LOAD DRIVE: 50mA Continuous

●WIDE OUTPUT VOLTAGE SWING: 1V to Rail

●FULLY PROTECTED: Thermal Shutdown Output Current-Limited

●WIDE OPERATING TEMPERATURE RANGE: –40°C TO +125°C

●PACKAGE OPTIONS: TO220-7 DDPACK-7 Surface-Mount

APPLICATIONS

●PIEZOELECTRIC CELLS

●TEST EQUIPMENT

●AUDIO AMPLIFIERS

●TRANSDUCER DRIVERS

●SERVO DRIVERS
