四路高速精密差动A®运算放大器 Quad High-Speed Precision Difet ® OPERATIONAL AMPLIFIER
DESCRIPON
The OPA404 is a high performance monolithic Difet® dielectrically-isolated FET quad operational amplifier. It offers an unusual combination of very low bias current together with wide bandwidth and fast slew rate.
FEATURES
● WIDE BANDWIDTH: 6.4MHz
●HIGH SLEW RATE: 35V/µs
● LOW OFFSET: ±750µV max
●LOW BIAS CURRENT: ±4pA max
●LOW SETTLING: 1.5µs to 0.01%
●STANDARD QUAD PINOUT
APPLICATIONS
● PRECISION INSTRUMENTATION
●OPTOELECTRONICS
●SONAR, ULTRASOUND
●PROFESSIONAL AUDIO EQUIPMENT
●MEDICAL EQUIPMENT
●DETECTOR ARRAYS
供电电流 9 mA
电路数 4
通道数 4
共模抑制比 84 dB
输入补偿漂移 3.00 µV/K
带宽 6.40 MHz
转换速率 35.0 V/μs
增益频宽积 6.4 MHz
输入补偿电压 750 µV
输入偏置电流 1 pA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
共模抑制比Min 84 dB
电源电压Max 36 V
电源电压Min 10 V
安装方式 Surface Mount
引脚数 16

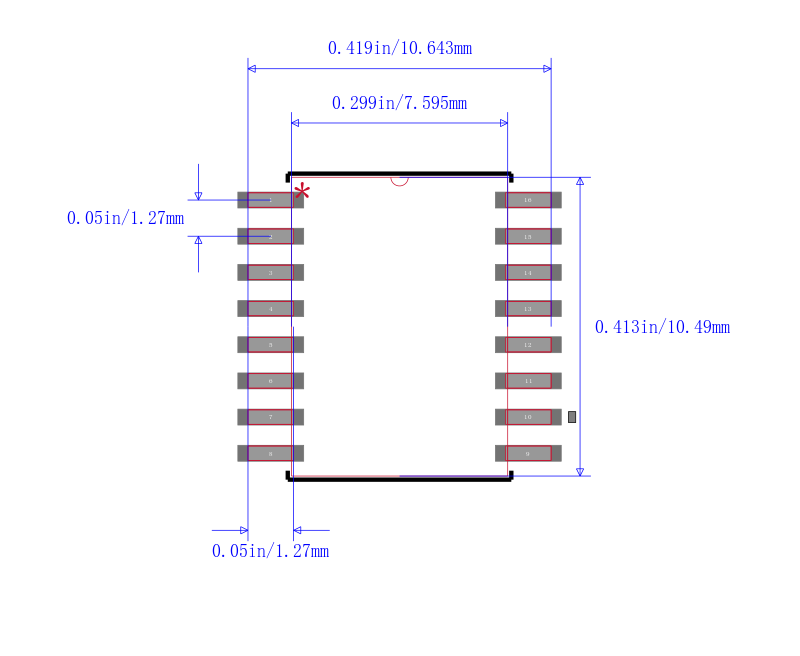

封装 SOIC-16
封装 SOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OPA404KUG4 TI 德州仪器 | 当前型号 | 当前型号 |
OPA404KU 德州仪器 | 类似代替 | OPA404KUG4和OPA404KU的区别 |
