OPA547TG3

具有关断功能的高电压、高电流运放 7-TO-220 -40 to 85

DESCRIPON

The OPA547 is a low-cost, high-voltage/high-current operational amplifier ideal for driving a wide variety of loads. A laser-trimmed monolithic integrated circuit provides excellent low-level signal accuracy and high output voltage and current.

FEATURES

●WIDE SUPPLY RANGE

Single Supply: +8V to +60V

Dual Supply: ±4V to ±30V

●HIGH OUTPUT CURRENT:

500mA Continuous

●WIDE OUTPUT VOLTAGE SWING

●FULLY PROTECTED:

Thermal Shutdown

Adjustable Current Limit

●OUTPUT DISABLE CONTROL

●THERMAL SHUTDOWN INDICATOR

●HIGH SLEW RATE: 6V/µs

●LOW QUIESCENT CURRENT

●PACKAGES:

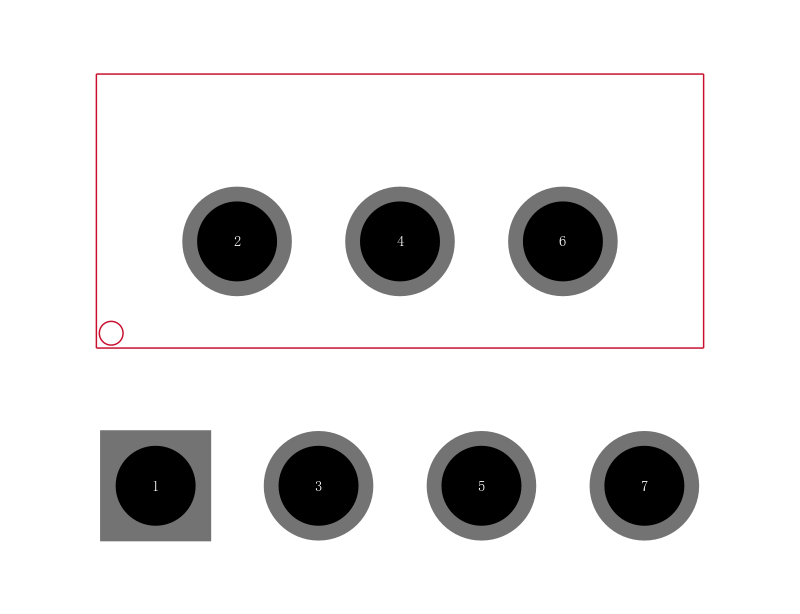

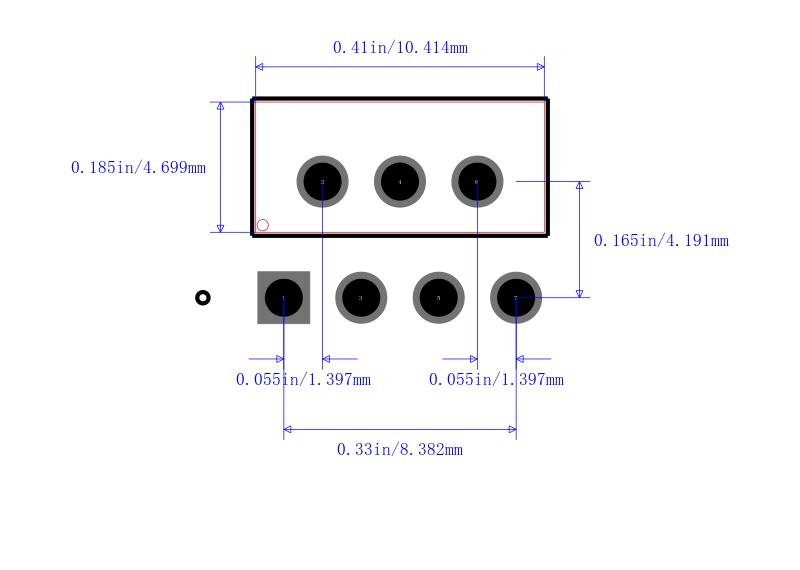

7-Lead TO-220, Zip and Straight Leads

7-Lead DDPAK Surface-Mount
