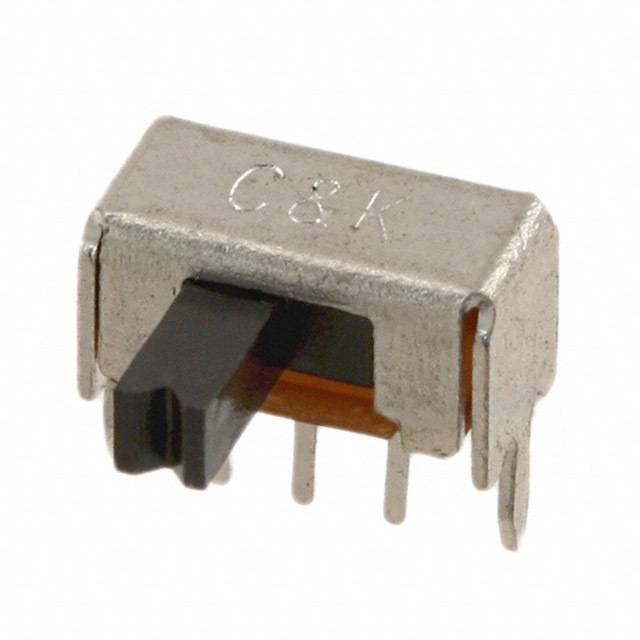

C & K COMPONENTS OS102011MA1QS1 拨动开关, SPDT, 开-开, 通孔安装, 100 mA
The is a Miniature Slide Switch features a new high-temperature option for lead-free soldering. Designed with a variety of actuators and terminations, the miniature slide switches are ideal for thermostat applications, as well as test and measurement equipment, computer peripherals and consumer products.
- .
- SPDT Contact Configuration
- .
- Variety of Actuators and Terminations
- .
- PC and Panel Mounting
- .
- Silver Contact Plating
- .
- Shorting Contacts
- .
- Halogen-free Material
额定电压DC 12 V
额定电流 0.1 A
绝缘电阻 100 mΩ
排数 1
方向 Right Angle
触点类型 SPDT
接触电阻 20 mΩ
额定电流Max 0.1A @12VDC
工作温度Max 70 ℃
工作温度Min -30 ℃
额定电压 12 VDC
额定电压DC Max 12 V
安装方式 Through Hole
封装 100
长度 8.6 mm
高度 4.7 mm
封装 100
触点材质 Copper Alloy
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 计算机和计算机周边, 测试与测量, 通信与网络, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509050
