OPA2277AIDRMR

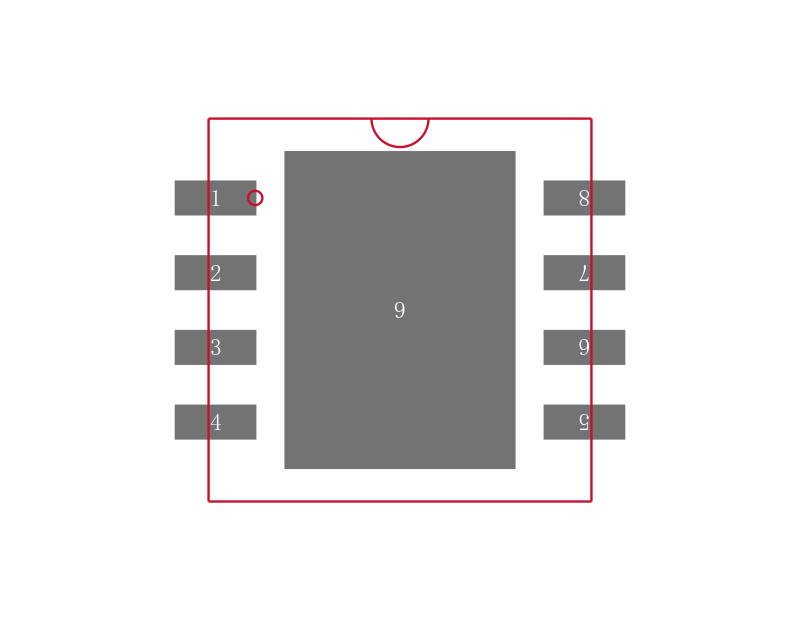

IC OPAMP GP 1MHz 8VSON

DESCRIPON

The OPA277 series precision op amps replace the industry standard OP-177. They offer improved noise, wider output voltage swing, and are twice as fast with half the quiescent current. Features include ultra low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection. Single, dual, and quad versions have identical specifications for maximum design flexibility.

FEATURES

● ULTRA LOW OFFSET VOLTAGE: 10µV

● ULTRA LOW DRIFT: ±0.1µV/°C

● HIGH OPEN-LOOP GAIN: 134dB

● HIGH COMMON-MODE REJECTION: 140dB

● HIGH POWER SUPPLY REJECTION: 130dB

● LOW BIAS CURRENT: 1nA max

● WIDE SUPPLY RANGE: ±2V to ±18V

● LOW QUIESCENT CURRENT: 800µA/amplifier

● SINGLE, DUAL, AND QUAD VERSIONS

● REPLACES OP-07, OP-77, OP-177

APPLICATIONS

●TRANSDUCER AMPLIFIER

●BRIDGE AMPLIFIER

● TEMPERATURE MEASUREMENTS

● STRAIN GAGE AMPLIFIER

●PRECISION INTEGRATOR

●BATTERY POWERED INSTRUMENTS

●TEST EQUIPMENT
