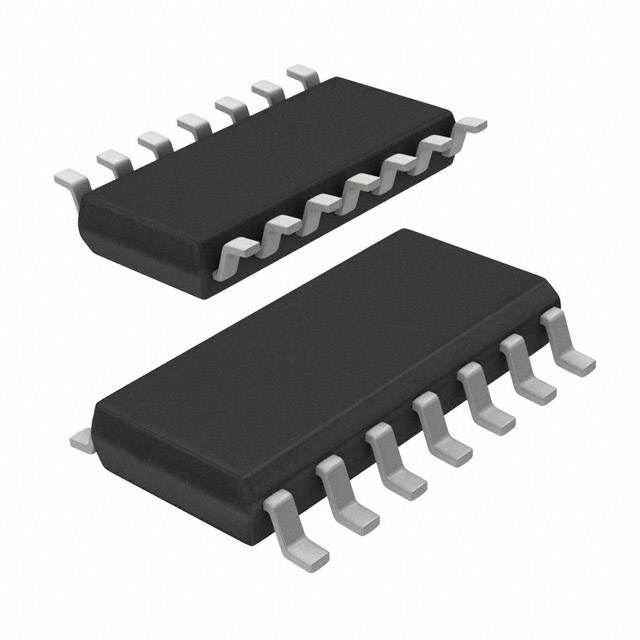

TEXAS INSTRUMENTS OPA3355EA/250 运算放大器, 三路, 200 MHz, 3个放大器, 360 V/µs, 2.5V 至 5.5V, TSSOP, 14 引脚
The is a triple high-speed voltage-feedback CMOS Operational Amplifier with digital shutdown enable function. The OPA355 is unity-gain stable and can drive large output currents. This feature provides power savings during idle periods and places the output in a high-impedance state to support output multiplexing. Common-mode input range for the OPA355 extends 100mV below ground and up to 1.5V from V+. The output swing is within 100mV of the rails, supporting wide dynamic range.
输出电流 60mA @5V
供电电流 8.3 mA
电路数 3
通道数 3
针脚数 14
共模抑制比 66 dB
输入补偿漂移 7.00 µV/K
带宽 200 MHz
转换速率 300 V/μs
增益频宽积 200 MHz
输入补偿电压 9 mV
输入偏置电流 0.05 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 450 MHz
增益带宽 200 MHz
共模抑制比Min 66 dB
电源电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电压反馈
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OPA3355EA/250 TI 德州仪器 | 当前型号 | 当前型号 |
OPA3355UA 德州仪器 | 完全替代 | OPA3355EA/250和OPA3355UA的区别 |
OPA3355EA/2K5 德州仪器 | 完全替代 | OPA3355EA/250和OPA3355EA/2K5的区别 |
OPA3355UAG4 德州仪器 | 完全替代 | OPA3355EA/250和OPA3355UAG4的区别 |
