OPTEK TECHNOLOGY OP233 红外发射器, 密闭, 18 °, TO-46, 100 mA, 2 V, 500 ns, 250 ns

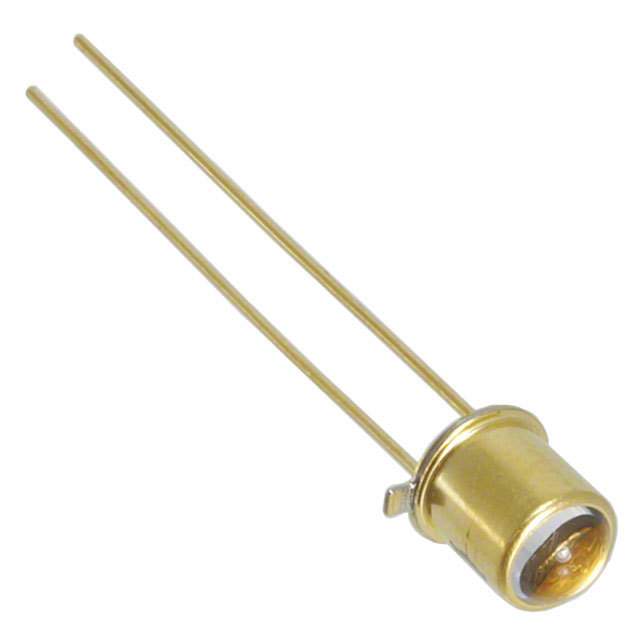

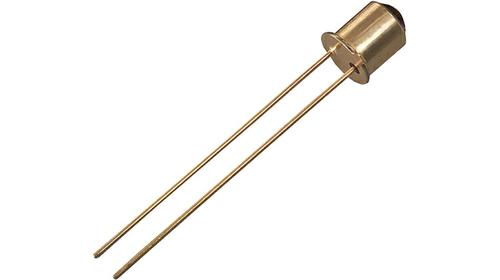

The is a gallium aluminium arsenide GaAIAs Infrared Emitting Diode, mounted in a hermetic metal housing. The gallium aluminium arsenide feature provides a higher radiated output than gallium arsenide at the same forward current. The device is lensed to provide a narrow beam angle 18° between half power points. The 890nm wavelength closely matches the spectral response of silicon phototransistors.
- .
- Focused and non-focused optical light pattern
- .
- Enhanced temperature range
- .
- Mechanically and spectrally matched to other OPTEK devices
正向电压 2 V
波长 890 nm
视角 18°
峰值波长 890 nm
耗散功率 200 W
上升时间 500 ns
测试电流 10 mA
正向电流 100 mA
正向电压Max 2 V
正向电流Max 100 mA
下降时间 250 ns
工作温度Max 125 ℃
工作温度Min -65 ℃
耗散功率Max 200 mW
安装方式 Through Hole
引脚数 2
封装 TO-46-2
长度 6.35 mm
高度 5.59 mm
脚长度 12.7 mm
封装 TO-46-2
工作温度 -65℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Wireless, Sensing & Instrumentation, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OP233 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
SE5470-004 霍尼韦尔 | 功能相似 | OP233和SE5470-004的区别 |
