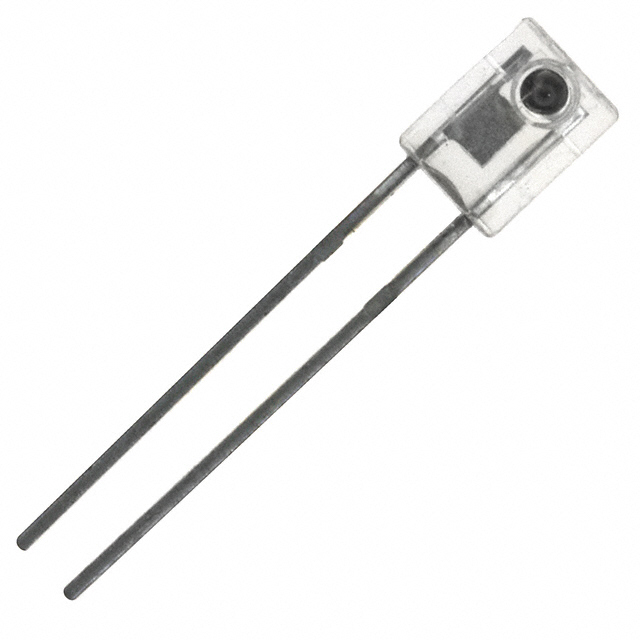

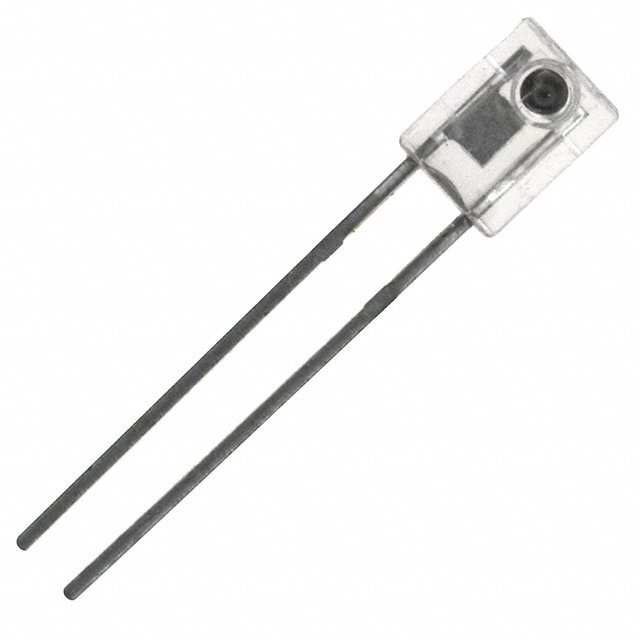

OPTEK TECHNOLOGY OP245PS 红外发射器, 36 °, 侧视, 50 mA, 1.7 V, 10 ns, 10 ns
The is a 850nm point source Infrared Emitting Diode moulded in IR transmissive amber-tinted epoxy package. The side-looking package is for use in PC board mounted slotted switches or as easily mounted interrupt detectors. The stable VF vs. Temperature characteristic makes it ideal for applications where voltage is limited such as battery operation. The low tr/tf make them ideal for high speed operations.
- .
- Point source irradiance pattern
- .
- Wavelength matched to silicon"s peak response
- .
- Fast switching speed
- .
- Side-looking package for space limited applications
正向电压 1.8 V
波长 850 nm
视角 36°
峰值波长 850 nm
耗散功率 100 mW
上升时间 10 ns
测试电流 20 mA
正向电流 50 mA
正向电压Max 1.7 V
正向电流Max 50 mA
下降时间 10 ns
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 侧视
脚长度 12.7 mm
封装 侧视
工作温度 -40℃ ~ 100℃ TA
外壳材质 Plastic
产品生命周期 Active
包装方式 Each
制造应用 Wireless, Sensing & Instrumentation, Industrial, Automation & Process Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
