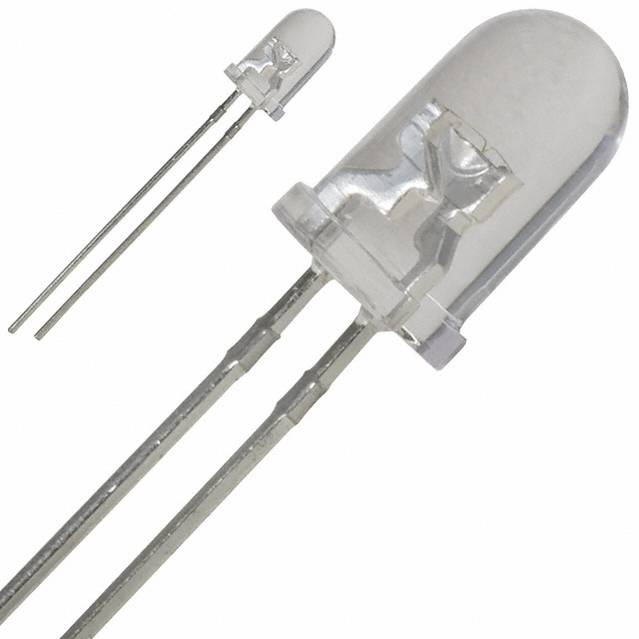

OPTEK TECHNOLOGY OVLGS0C8B9 发光二极管, 高强度, 红色, 通孔安装, T-1 3/4 5mm, 20 mA, 2 V, 630 nm
The is a High-intensity with water clear lens. It is made of AlInGaP. The high intensity LED mounted in a clear plastic package. Each device incorporates an integral moulded lens that enables a narrow beam angle and provides an even emission pattern. Designed to produce light over a wide range of drive currents, this LED is useful in applications that require a higher on-axis brightness than that achievable with standard lamps. It is suitable for indoor/outdoor applications, variable message boards, store front signage and indicators.
额定功率 120 mW
正向电压 2 V
波长 623 nm
发光强度 8.55 cd
视角 6°
透镜样式 Non-Diffused
耗散功率 72.0 mW
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 100 ℃
工作温度Min 40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1-3
高度 8.90 mm
脚长度 25.4 mm
封装 T-1-3
颜色 Red
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 信令, Signalling, 工业, Commercial, 商业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
