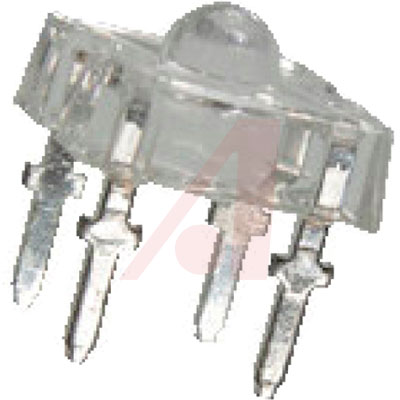

7.6 mm 红色 100° 2.5 V 无色透明 透镜 LED 灯 通孔
The is a Lamp with through hole mounting, round-shaped lens, 100° viewing angle, 630nm wavelength type, red colour, clear lens and T-1 bulb size. It is designed with higher forward voltage to maximize brightness and incorporates a low-profile lens to enhance efficient light distribution. Response time is fast and it consumes less power resulting in low current requirements from circuit power supply. Tubular arrays replace neon in outdoor and indoor signs.
正向电压 2.5 V
波长 630 nm
发光强度 4.5 mcd
视角 100°
透镜样式 Non-Diffused
峰值波长 624 nm
耗散功率 210 mW
测试电流 70 mA
正向电流 70 mA
正向电压Max 3 V
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 210 mW
安装方式 Through Hole
引脚数 4
封装 DIP-4
引脚间距 5.08 mm
长度 7.60 mm
宽度 7.60 mm
高度 6.15 mm
脚长度 2.80 mm
封装 DIP-4
引脚间距 5.08 mm
颜色 Red
产品生命周期 Active
包装方式 Tube
制造应用 LED Lighting, 车用, Automotive, 信号处理, 发光二极管照明, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
