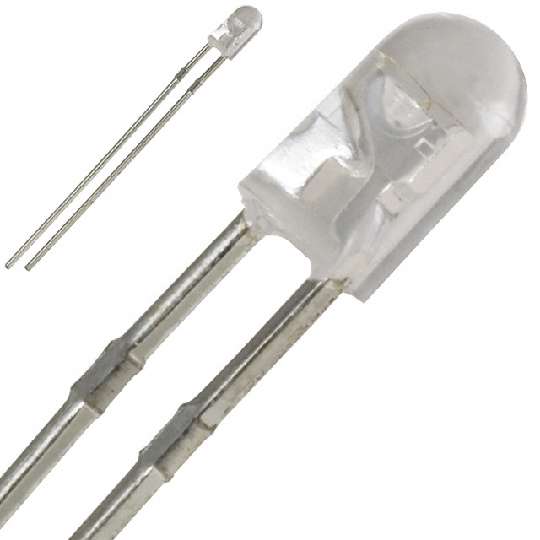

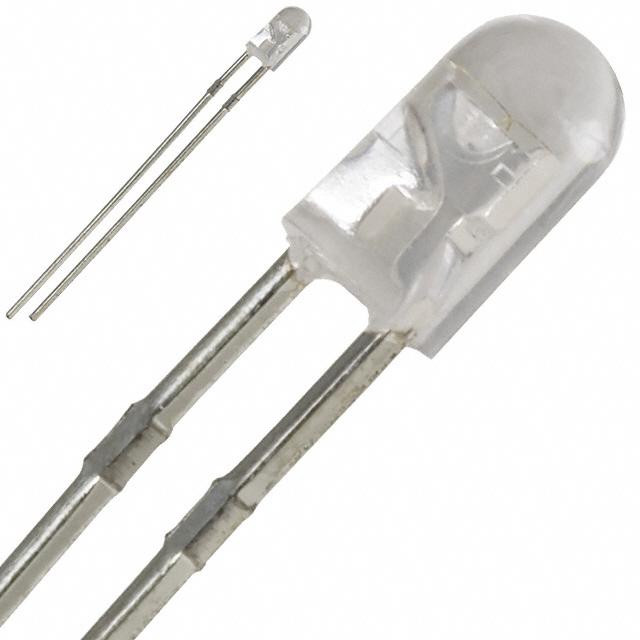

OPTEK TECHNOLOGY OVLBR4C7 发光二极管, 红色, 通孔安装, T-1 3mm, 20 mA, 2.2 V, 640 nm
The from Optek Tchnology is a round shape, high intensity red colour made of AllnGaP material. Its UV resistant epoxy lens makes this device an optimal solution for outdoor applications. This LED is widely used at pedestrian signals, signage and architectural lighting, backlighting and outdoor/indoor displays.
- .
- Standard bulb size of T-1 3mm
- .
- Forward voltage is 2V
- .
- Forward current If is 20mA
- .
- Viewing angle is 45°
- .
- Dominant wavelength is 623nm
- .
- Provides a well defined and even emission pattern
- .
- Luminous intensity of 3700mcd at 20mA
额定功率 120 mW
正向电压 2.2 V
波长 623 nm
发光强度 1.9 cd
视角 45°
透镜样式 Non-Diffused
峰值波长 633 nm
耗散功率 120 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.4 V
正向电流Max 50 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 120 mW
安装方式 Through Hole
引脚数 2
封装 T-1
高度 5.1 mm
脚长度 23.9 mm
封装 T-1
颜色 Red
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial, 便携式器材, 车用, LED Lighting, Automotive, Consumer Electronics, Portable Devices, 消费电子产品, 发光二极管照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
