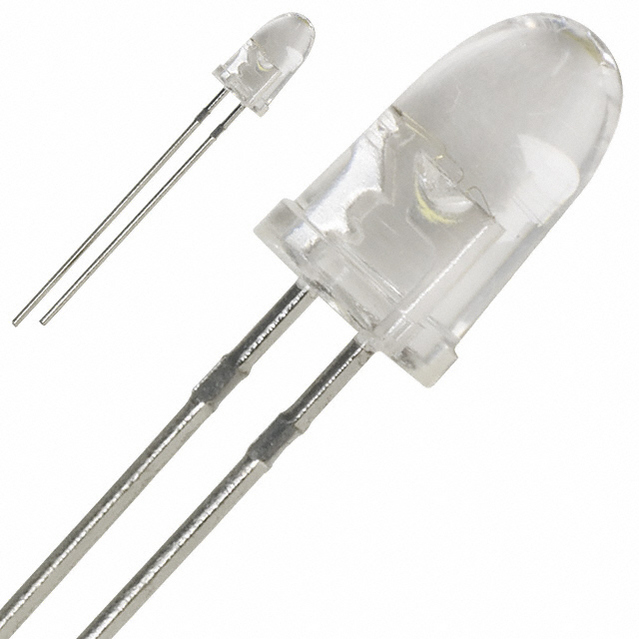

OPTEK TECHNOLOGY OVLEW1CB9 发光二极管, 白色, 通孔安装, T-1 3/4 5mm, 20 mA, 3.2 V, 35 cd
The from Optek Technology is a through hole, round shaped, high intensity white made of InGaN material. The phosphor used in the reflector converts the blue emission of the InGaN chip to the ideal white light. This LED designed for applications that require a focused high luminous output such as indoor and outdoor displays, marker lights and optical indicators.
- .
- Standard bulb size of T-1 3/4 5mm
- .
- Forward voltage is 3.2V
- .
- Forward current is 20mA
- .
- Luminous intensity is 35000mcd
- .
- Viewing angle is 15°
正向电压 3.2 V
发光强度 35 cd
视角 15°
透镜样式 Non-Diffused
耗散功率 100 W
测试电流 20 mA
正向电流 20 mA
正向电压Max 4 V
正向电流Max 30 mA
工作温度Max 95 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 2
封装 T-1-3
高度 8.80 mm
脚长度 25.4 mm
封装 T-1-3
颜色 White
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Portable Devices, 工业, 发光二极管照明, LED Lighting, Consumer Electronics, 消费电子产品, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OVLEW1CB9 TT Electronics/Optek Technology | 当前型号 | 当前型号 |
MCL053SWC-WH1 Multicomp | 功能相似 | OVLEW1CB9和MCL053SWC-WH1的区别 |
