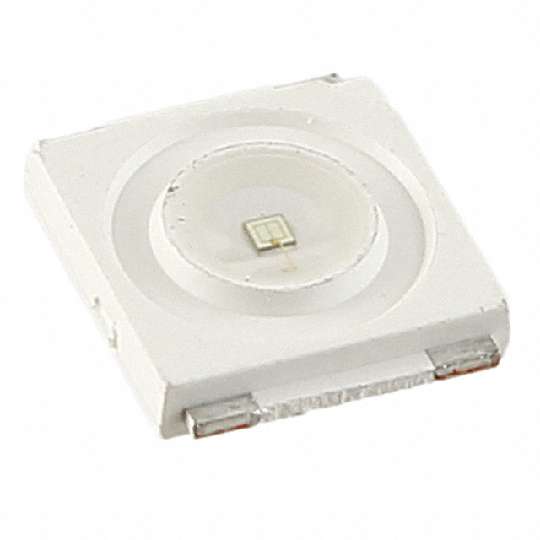

OPTEK TECHNOLOGY OVSPGBCR4 功率发光二极管灯, 绿色
The OVSPxBCR4 Series is an energy-efficient packaged source that offers high luminance, and a long operating lifespan. These devices offer a 120° viewing angle and an ultra-low profile 1.5mm making them highly suitable for conventional lighting and specialized applications. Optional optics are offered to suit application.
**Applications:**
* Automotive exterior and interior lighting
* Architectural indoor and outdoor lighting
* General lighting
* Electronic signs and signals
**Features:**
* Robust energy-efficient design with long operating life
* Low thermal resistance
* Exceptional spatial uniformity
* Optional optics to suit application
* Available in yellow, blue, green, red and white
额定电压DC 3.60 V
额定功率 1.20 W
供电电流 350 mA
正向电压 3.6 V
波长 530 nm
发光强度 48.0 mcd
视角 120°
峰值波长 525 nm
热阻 20 ℃/W
测试电流 350 mA
正向电流 350 mA
正向电压Max 4 V
正向电流Max 350 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 1200 mW
安装方式 Surface Mount
引脚数 2
封装 SMD-4
长度 6.00 mm
宽度 6.00 mm
高度 1.40 mm
封装 SMD-4
颜色 Green
外观颜色 Clear
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
