19.7 英寸 红色 120° 光束角度 柔性 30 LED 灯条

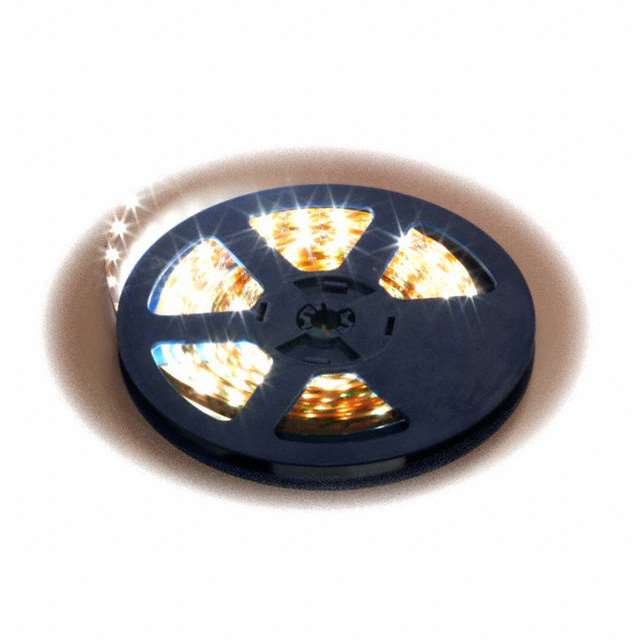

Optek OVQ12S30 Series Flexible Light Strip
This LED Light Strip is a flexible and scalable lighting solution using high brightness LEDs to supply illumination for residential, commercial, and industrial applications. Up to 16 feet 5 meters can be operated with a single 12V power supply. Double-sided tape provides easy installation in most indoor applications and allows many different configurations.
Features:
Operating life longer than fluorescent and incandescent light sources
Low power consumption
Environmentally friendly light source no mercury
Market Segments:
Lighting
Signage
Applications:
Commercial and residential decoration
Under-counter lighting
Media illumination
Large area backlighting
Small to medium channel letters
Point-of-sale displays
Neon replacement
电源电压DC 12.0 V
额定功率 2.7 W
输入电压DC 12.0 V
正向电压 12 V
波长 625 nm
视角 120°
耗散功率 2.7 W
功耗 1.9 W
输入功率 1.9 W
测试电流 158 mA
工作温度Max 50 ℃
工作温度Min -30 ℃
耗散功率Max 2700 mW
额定电压 13 V
输入电压 12 VDC
封装 REEL
长度 500 mm
宽度 8 mm
高度 2.29 mm
封装 REEL
颜色 Red
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
