OVQ12S30WW7概述

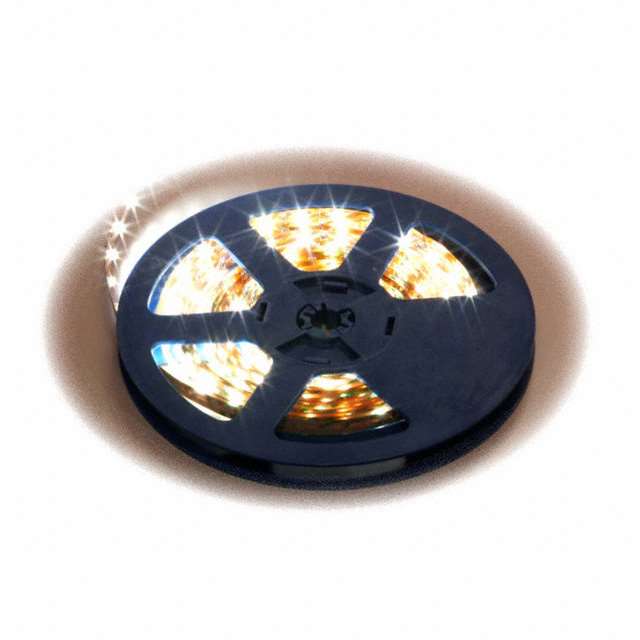

LED照明条和带 Warm White, 3300K Flexible Strip

This light strip is a flexible and scalable lighting solution using high brightness LEDs. Up to 16 feet 5 meters can be operated with a single 12V power supply. Dual-sided tape provides easy installation in most indoor applications and allows for many different configurations.

**Features:**

* Operating Life Longer than Fluorescent and Incandescent Light Sources

* Easy Installation in Most Indoor Applications

* Low PowerCconsumption

* Environmentally Friendly Light Source No Mercury

OVQ12S30WW7中文资料参数规格
技术参数

电源电压DC 12.0 V

额定功率 1.60 W

输入电压DC 12.0 V

视角 120°

耗散功率 2300 mW

功耗 1.60 W

输入功率 1.6 W

测试电流 133 mA

工作温度Max 50 ℃

工作温度Min -30 ℃

耗散功率Max 2300 mW

输入电压 12 VDC

封装参数

封装 120

外形尺寸

长度 500 mm

宽度 8 mm

高度 2.29 mm

封装 120

物理参数

颜色 White

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15
