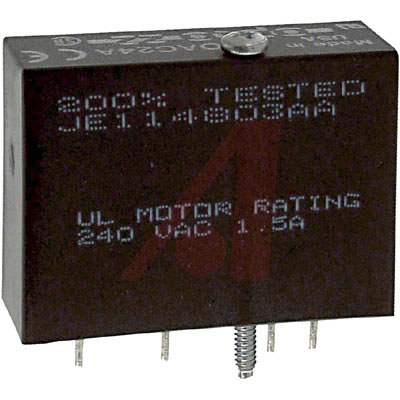

OPTO 22 OAC24A 输入输出模块
Standard I/O Module, AC Ouput, 25 to 65 Hz Operating Frequency
* Used for relays, solenoids, motor starters, heaters, lamps or indicators
AC output modules are used for controlling or switching AC Loads. Each module provides 4000 V RMS of optical isolation between the field devices and the control logic.
e络盟:
输入输出模块
Allied Electronics:
Module; Output; Analog; 24 to 280; Sup-V 24VDC; 18mA Cur-In; 43.2mmLx15.2mmWx31.8mmH
Chip1Stop:
I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In
Newark:
# OPTO 22 OAC24A Output Module, AC Output 24–280 VAC, 24 VDC Logic
MASTER:
I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In
Electro Sonic:
I/O Module Relays Output Module 4000Vrms Thru-Hole/Plug-In
电源电压DC 18.0V min
额定电压DC 24.0 V
工作电压 24VAC ~ 280VAC
额定电流 3 A
绝缘电阻 ≥100MΩ @500VDC
输出接口数 1
输出电压 24V ~ 280V
输出电流 3.00 A
触点类型 SPST-NO
通道数 1
输入电流 18 mA
隔离电压 4000 VAC
模拟输出数 1
工作温度Max 70 ℃
工作温度Min -30 ℃
电源电压 24 VDC
输入电压 18V ~ 32V
安装方式 Rack
长度 43.2 mm
宽度 15.2 mm
高度 31.8 mm
工作温度 -30℃ ~ 70℃
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
HTS代码 9032900000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OAC24A Opto 22 奥普图 | 当前型号 | 当前型号 |
OAC-24A Brumfield | 类似代替 | OAC24A和OAC-24A的区别 |
70-OAC24 Grayhill | 功能相似 | OAC24A和70-OAC24的区别 |
