OP Amp Dual GP ±15V/30V 8Pin SOIC N T/R
General Purpose Amplifier 2 Circuit 8-SOIC
得捷:
IC INST AMP 2 CIRCUIT 8SOIC
立创商城:
OP221GSZ-REEL7
贸泽:
Operational Amplifiers - Op Amps Dual Low Power IC Wide Supply VTG Rnge
艾睿:
Increase functionality to your instrumentation with this general purpose amplifier OP221GSZ-REEL7 OP amp from Analog Devices. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±2.5 V and maximum of ±15 V. This op amp has a temperature range of -40 °C to 85 °C. This device utilizes bipolar technology. It has 2 channels per chip. This device uses one or two power supplies.
安富利:
OP Amp Dual GP ±15V/30V 8-Pin SOIC N T/R
Verical:
OP Amp Dual GP ±15V/30V 8-Pin SOIC N T/R
DeviceMart:
IC OPAMP GP DUAL LP 8SOIC
供电电流 850 µA
电路数 2
通道数 2
共模抑制比 75 dB
转换速率 300 mV/μs
输入补偿电压 0.5 mV
输入偏置电流 70 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 600 kHz
共模抑制比Min 75 dB
电源电压Max 30 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 8

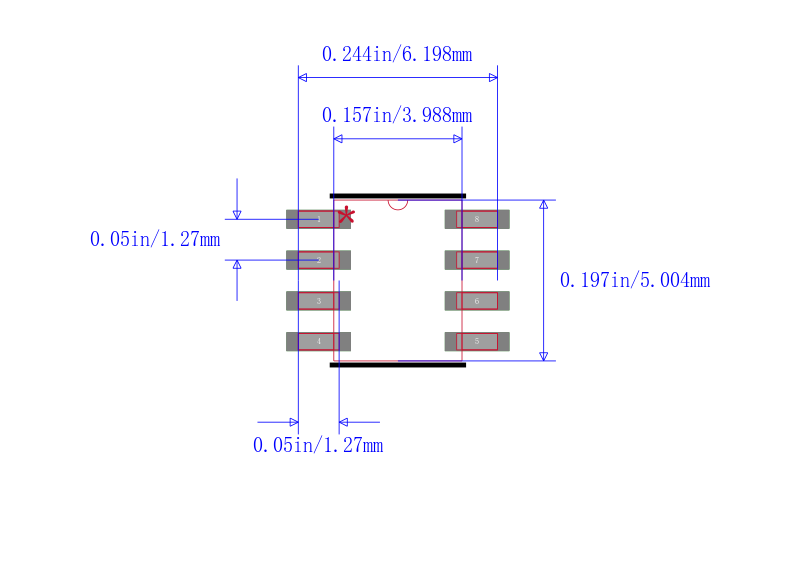

封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OP221GSZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
OP221GS 亚德诺 | 完全替代 | OP221GSZ-REEL7和OP221GS的区别 |
OP221GS-REEL 亚德诺 | 完全替代 | OP221GSZ-REEL7和OP221GS-REEL的区别 |
OP221GSZ 亚德诺 | 类似代替 | OP221GSZ-REEL7和OP221GSZ的区别 |
