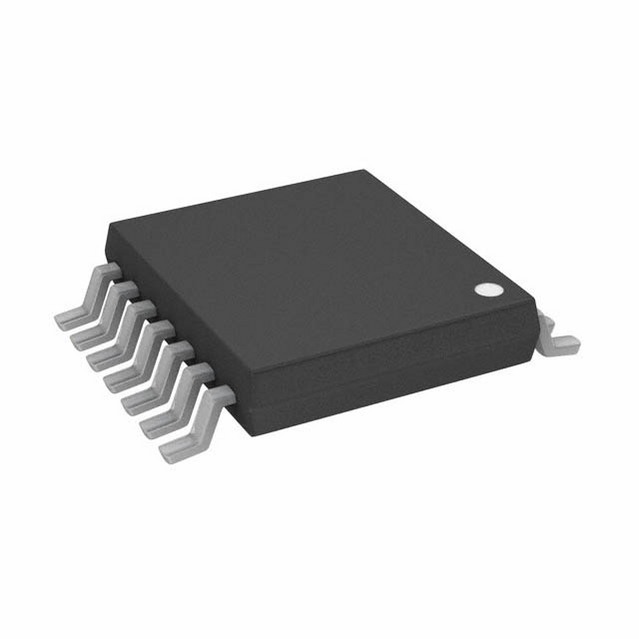

ANALOG DEVICES OP491GRUZ-REEL 芯片, 运算放大器, 微功率, 3KHZ, 0.5V/US, TSSOP-14
通用 放大器 电路 满摆幅 14-TSSOP
得捷:
IC OPAMP GP 4 CIRCUIT 14TSSOP
立创商城:
OP491GRUZ-REEL
贸泽:
运算放大器 - 运放 Micropwr RRIO Quad SGL-Supply 2.7-12V
e络盟:
芯片, 运算放大器, 微功率, 3KHZ, 0.5V/US, TSSOP-14
艾睿:
With this general purpose amplifier OP491GRUZ-REEL OP amp from Analog Devices you will be able to amplify the difference between two voltages in no time. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±6 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 4 channels per chip. This device uses one or two power supplies. This device is made with bipolar technology.
安富利:
OP Amp Quad GP R-R I/O ±6V/12V 14-Pin TSSOP T/R
Chip1Stop:
Op Amp Quad GP R-R I/O ツア6V/12V 14-Pin TSSOP T/R
Verical:
Op Amp Quad Micropower Amplifier R-R I/O ±6V/12V 14-Pin TSSOP T/R
Newark:
# ANALOG DEVICES OP491GRUZ-REEL Operational Amplifier, Quad, 4 Amplifier, 3 MHz, 0.5 V/µs, 2.7V to 12V, TSSOP, 14 Pins
DeviceMart:
IC OPAMP GP R-R 3MHZ 14TSSOP
Win Source:
IC OPAMP GP 3MHZ RRO 14TSSOP
供电电流 260 µA
电路数 4
通道数 4
针脚数 14
共模抑制比 70 dB
带宽 3 MHz
转换速率 500 mV/μs
增益频宽积 3 MHz
输入阻抗 7.00 MΩ
输入补偿电压 0.7 mV
输入偏置电流 30 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 3 MHz
共模抑制比Min 70 dB
电源电压 2.7V ~ 12V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OP491GRUZ-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
OP491GRU-REEL 亚德诺 | 类似代替 | OP491GRUZ-REEL和OP491GRU-REEL的区别 |
OP491GRU 亚德诺 | 功能相似 | OP491GRUZ-REEL和OP491GRU的区别 |
