超低功耗，轨到轨输出运算放大器 Ultralow Power, Rail-to-Rail Output Operational Amplifiers
GENERAL DESCRIPTION
The OP281 and OP481 are dual and quad ultralow power single-supply amplifiers featuring rail-to-rail outputs. Each operates from supplies as low as 2.0 V and is specified at +3 V and +5 V single supplies as well as ±5 V dual supplies.
FEATURES
Low supply current: 4 μA/amplifier maximum
Single-supply operation: 2.7 V to 12 V
Wide input voltage range
Rail-to-rail output swing
Low offset voltage: 1.5 mV
No phase reversal
APPLICATIONS
Comparator
Battery-powered instrumentation
Safety monitoring
Remote sensors
Low voltage strain gage amplifiers
供电电流 3.3 µA
电路数 4
通道数 4
共模抑制比 95.0 dB
转换速率 25.0 mV/μs
增益频宽积 105 kHz
输入阻抗 5.00 GΩ
输入补偿电压 100 µV
输入偏置电流 3 nA
工作温度Max 85 ℃
工作温度Min -40 ℃
共模抑制比Min 65 dB
安装方式 Surface Mount

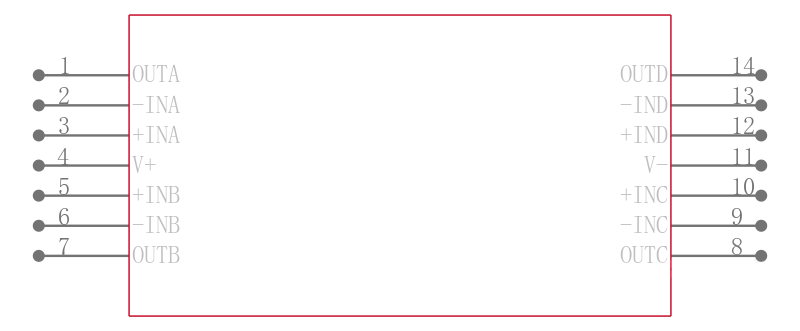

引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 End of Life
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OP481GS-REEL ADI 亚德诺 | 当前型号 | 当前型号 |
OP481GSZ-REEL 亚德诺 | 完全替代 | OP481GS-REEL和OP481GSZ-REEL的区别 |
OP481GS 亚德诺 | 完全替代 | OP481GS-REEL和OP481GS的区别 |
OP481GS-REEL7 亚德诺 | 完全替代 | OP481GS-REEL和OP481GS-REEL7的区别 |
