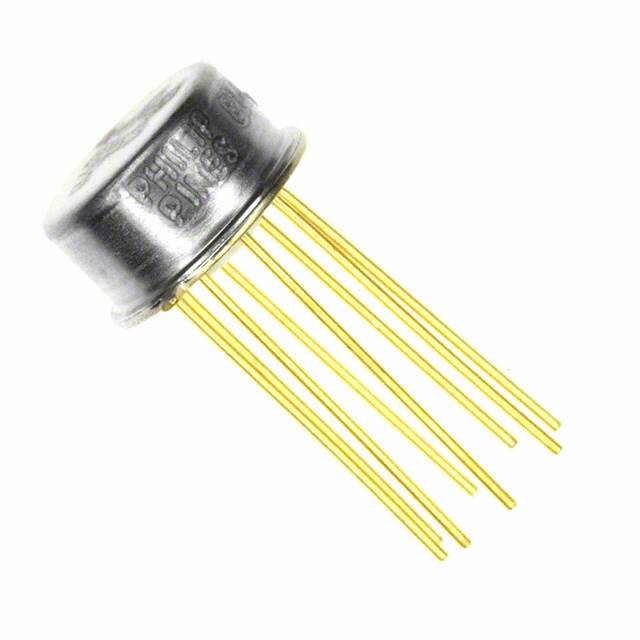

ANALOG DEVICES OP77FJZ 运算放大器, 600 kHz, 1个放大器, 0.3 V/µs, ± 3V 至 ± 18V, TO-99, 8 引脚 新
OP77/200/400 精密,Analog Devices
Analog Devices 的 OP77 精密运算放大器具有超低偏置电压和偏移以及出色的增益线性。OP200 和 OP400 型号在节省空间的双和四路封装中提供了相似的精确性能。
### 运算放大器,Analog Devices
得捷:
IC OPAMP GP 1 CIRCUIT TO99-8
欧时:
Analog Devices 运算放大器 OP77FJZ, 8引脚 TO-99封装
立创商城:
OP77FJZ
e络盟:
运算放大器, 600 kHz, 1个放大器, 0.3 V/µs, ± 3V 至 ± 18V, TO-99, 8 引脚
艾睿:
Op Amp Single Ultra Low Offset Voltage Amplifier ±22V 8-Pin TO-99 Tube
安富利:
The OP777 , OP727 , and OP747 are precision single , dual, and quad rail-to-rail output single- supply amplifiers featuring micropower operation and rail-to-rail output ranges. These amplifier s provide improved performance over the industry -standard OP07 with ±15 V supplies , and offer the further advantage of true single-supply operation down to V , and smaller package options than any other high-voltage precision bipolar amplifier. Outputs are stable with capacitive loads of over 500 pF. Supply current is less than 300 μA per amplifier at 5 V. 500 Ω series resistors protect the inputs, allowing input signal levels several volts above the positive supply without phase reversal. Applications for these amplifiers include both line-powered and portable instrumentation, remote sensor signal conditioning, and precision filters. The OP777, OP727, and OP747 are specified over the extended industrial –40°C to +85°C temperature range. The OP777, single, is available in 8-lead MSOP and 8-lead SOIC packages. The OP747, quad, is available in 14-lead TSSOP and narrow 14-lead SO packages. Surface-mount devices in TSSOP and MSOP packages are available in tape and reel only. The OP727, dual, is available in 8-lead TSSOP and 8-lead SOIC packages. The OP727 8-lead SOIC pin configuration differs from the standard 8-lead operational amplifier pinout.
Chip1Stop:
OP Amp Single GP ±22V 8-Pin TO-99 Tube
Verical:
Op Amp Single Ultra Low Offset Voltage Amplifier ±22V 8-Pin TO-99 Tube
Newark:
# ANALOG DEVICES OP77FJZ Operational Amplifier, Single, 1 Amplifier, 600 kHz, 0.3 V/µs, ± 3V to ± 18V, TO-99, 8 Pins
DeviceMart:
IC OPAMP GP 600KHZ PREC TO99-8
供电电流 2.00 mA
电路数 1
通道数 1
针脚数 8
共模抑制比 140 dB
带宽 600 kHz
转换速率 300 mV/μs
增益频宽积 600 kHz
输入阻抗 200 GΩ
输入补偿电压 20 µV
输入偏置电流 1.2 nA
工作温度Max 85 ℃
工作温度Min -25 ℃
增益带宽 140 dB
共模抑制比Min ≥115 dB
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 8

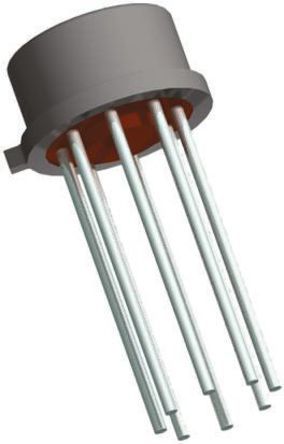

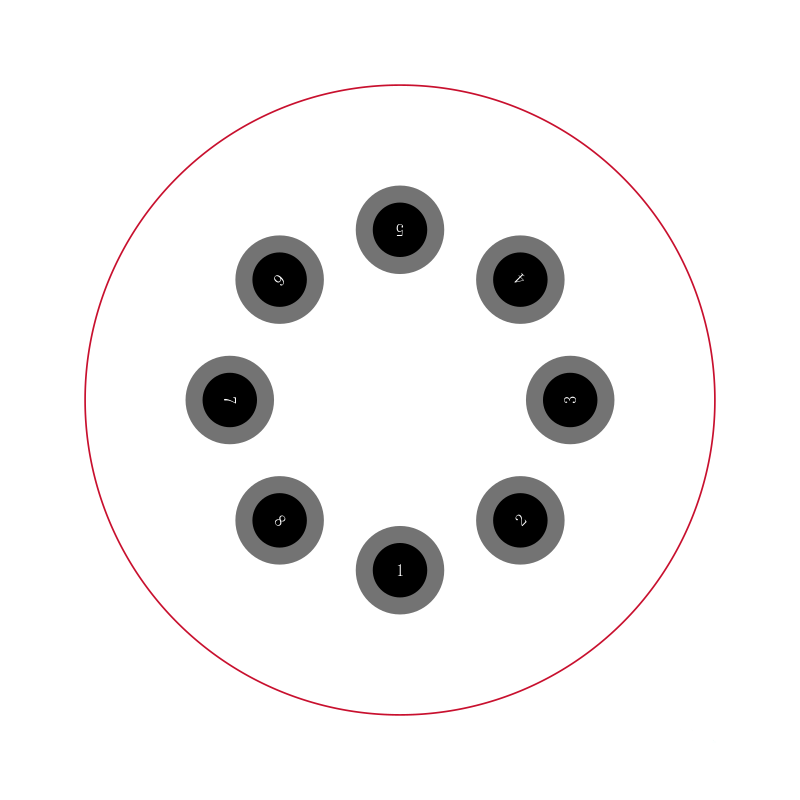

封装 TO-99-8
长度 9.4 mm
宽度 9.4 mm
高度 4.7 mm
封装 TO-99-8
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
制造应用 传感与仪器, Industrial, 工业, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 Yes
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OP77FJZ ADI 亚德诺 | 当前型号 | 当前型号 |
LT1097S8#PBF 凌力尔特 | 功能相似 | OP77FJZ和LT1097S8#PBF的区别 |
OP77FJ 亚德诺 | 功能相似 | OP77FJZ和OP77FJ的区别 |
