高速,快速设置精密运算放大器 High Speed, Fast Setting Precision Operational Amplifier
J-FET 放大器 1 电路 - TO-99-8
得捷:
IC OPAMP JFET 1 CIRCUIT TO99-8
立创商城:
OP42FJ
艾睿:
Op Amp Single High Speed Amplifier ±20V 8-Pin TO-99 Tube
安富利:
The OP-42 is a fast precision JFET-input operational amplifier. Similar in speed to the OP-17, the OP-42 offers a symmetric 58V/µs slew rate and is internally compensated for unity-gain operation. OP-42 speed is achieved with a supply current of less than 6mA. Unity gain stability, a wide full-power bandwidth of 900kHz, and a fast settling-time of 800ns to 0.01% make the OP-42 an ideal output amplifier for fast digital-to-analog converters. Equal attention was given to both speed and precision in the OP-42 design.Its tight 750µV maximum input offset voltage combined with well-controlled drift of less than 10µV/%C eliminates the need for external nulling in many circuits. The common-mode rejection of the 88dB minimum over a ±11 V input voltage range is exceptional for a high-speed amplifier. High CMR combined with a minimum 500V/mV gain into 10kohm load ensure excellent linearity in both noninverting and inverting gain configurations. The low input bias and offset currents provided by the JFET input stage suit the OP-42 for use in high-speed sample and hold circuits, peak detectors, and log amplifiers. Excellent radiation hardness characteristics make the OP-42 ideal for military and aerospace applications.The OP-42 conforms to the standard 741 pinout with nulling to V-. The OP-42 upgrades the performance of circuits using the AD544, AD611, AD711, and LF400 by direct replacement. In circuits without nulling, the OP-42 offers an upgrade for designs using the OP-16, OP-17, LT1022, LT1056, and HA2510.
Verical:
Op Amp Single High Speed Amplifier ±20V 8-Pin TO-99 Tube
DeviceMart:
IC OPAMP JFET 10MHZ PREC TO99-8
供电电流 5.1 mA
电路数 1
通道数 1
共模抑制比 80 dB
输入电容 6.00 pF
转换速率 50.0 V/μs
增益频宽积 10 MHz
输入阻抗 1.00 TΩ
输入补偿电压 400 µV
输入偏置电流 130 pA
工作温度Max 85 ℃
工作温度Min -25 ℃
增益带宽 10 MHz
共模抑制比Min 80 dB
安装方式 Through Hole
引脚数 8

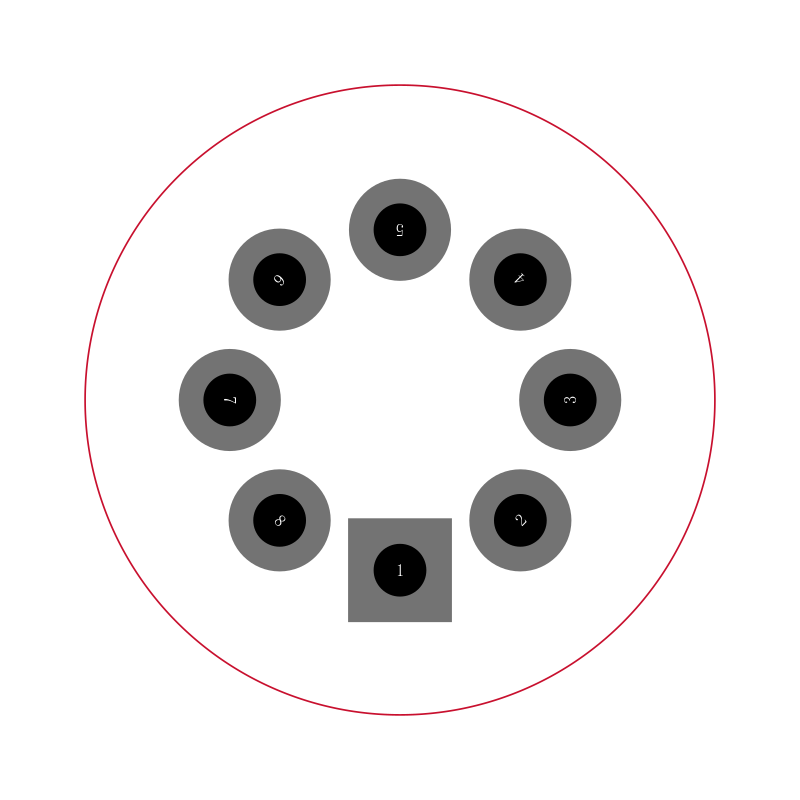

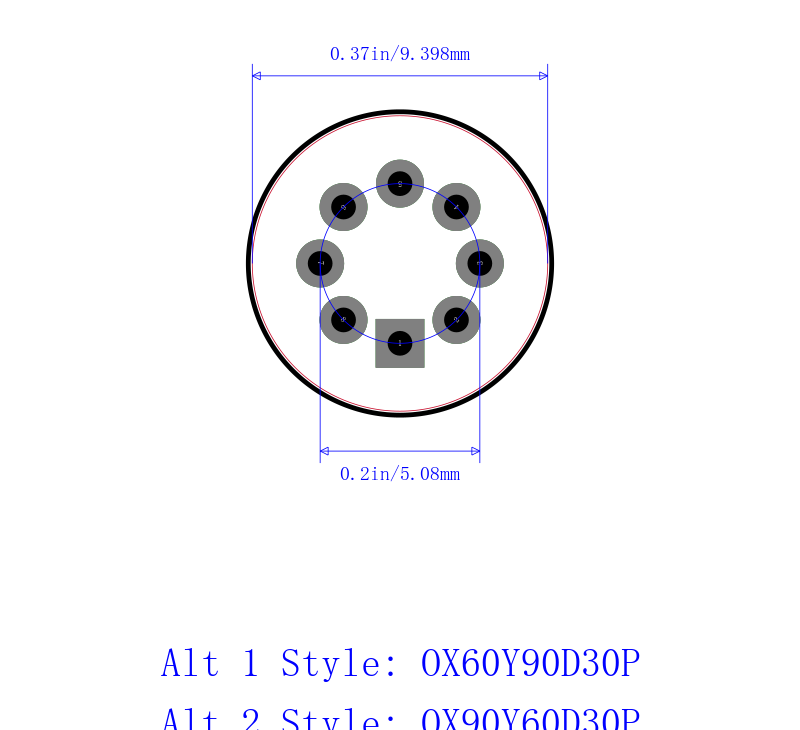

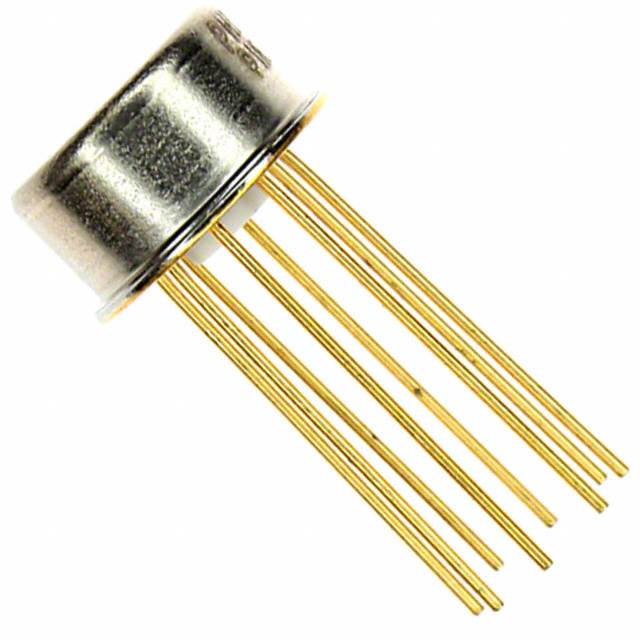

封装 TO-99-8
宽度 9.4 mm
封装 TO-99-8
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 Yes
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
OP42FJ ADI 亚德诺 | 当前型号 | 当前型号 |
