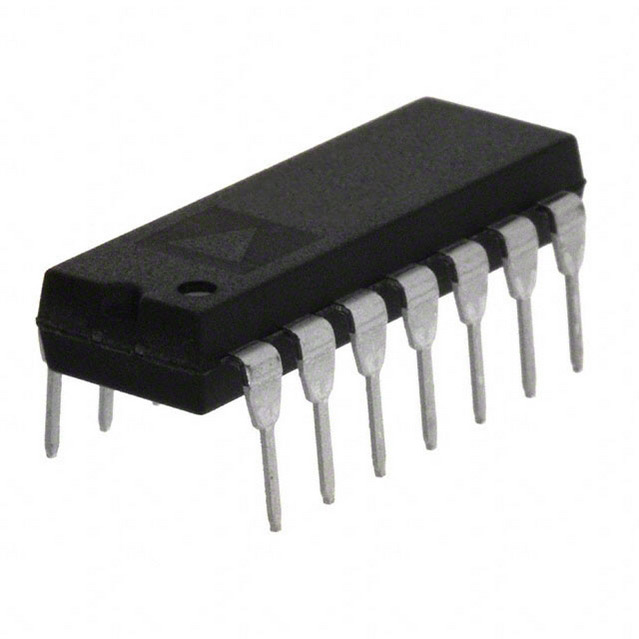

OP491GP

Micropwr RRIO Quad SGL-Supply 2.7-12V

GENERAL DESCRIPTION

The OP191, OP291 and OP491 are single, dual and quad micropower, single-supply, 3 MHz bandwidth amplifiers featuring rail-to-rail inputs and outputs. All are guaranteed to operate from a 3 volt single supply as well as ±5 volt dual supplies.

Fabricated on Analog Devices’ CBCMOS process, the OP191 family has a unique input stage that allows the input voltage to safely extend 10 volts beyond either supply without any phase inversion or latch-up. The output voltage swings to within millivolts of the supplies and continues to sink or source current all the way to the supplies.

Applications for these amplifiers include portable telecom equipment, power supply control and protection, and interface for transducers with wide output ranges. Sensors requiring a rail-to-rail input amplifier include Hall effect, piezo electric, and resistive transducers.

FEATURES

  Single-Supply Operation: 2.7 V to 12 V

  Wide Input Voltage Range

  Rail-to-Rail Output Swing

  Low Supply Current: 300 µA/Amp

  Wide Bandwidth: 3 MHz

  Slew Rate: 0.5 V/µs

  Low Offset Voltage: 700 µV

  No Phase Reversal

APPLICATIONS

  Industrial Process Control

  Battery Powered Instrumentation

  Power Supply Control and Protection

  Telecom

  Remote Sensors

  Low Voltage Strain Gage Amplifiers

  DAC Output Amplifier
