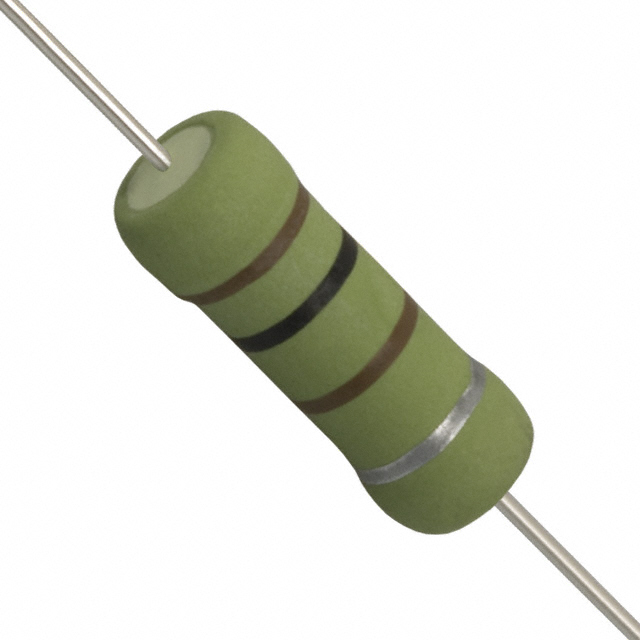

OHMITE OY101KE 通孔电阻器, OY系列, 100 ohm, 2 W, ± 10%, 400 V, 轴向引线
The is a through-hole Fixed Resistor with silicone ceramic coating ceramic composition. The OY series of fixed ceramic resistor is ideal for circuitry associated with surges, high peak power or high energy. It offers enhanced performance in high voltage power supplies, R-C snubber circuits and inrush limiters. The OY resistor can often replace carbon composition resistor which can be difficult to source.
- .
- Meets high energy density demands
- .
- High peak power
额定电压DC 400 V
容差 ±10 %
额定功率 2 W
电阻 100 Ω
阻值偏差 ±10 %
工作温度Max 220 ℃
工作温度Min -40 ℃
额定电压 400 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 22.5 mm
直径 7.00 mm
脚长度 38.0 mm
封装 Axial
材质 Ceramic
工作温度 -40℃ ~ 220℃
温度系数 ±1300 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533100060
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
OY101KE Ohmite | 当前型号 | 当前型号 |
OY101K Ohmite | 完全替代 | OY101KE和OY101K的区别 |
MCPRW02WKP101B00 Multicomp | 类似代替 | OY101KE和MCPRW02WKP101B00的区别 |
NCR200KR-73-100R 国巨 | 类似代替 | OY101KE和NCR200KR-73-100R的区别 |
