NXP OM13069 演示板, 智能手机, 快插式, LPC800

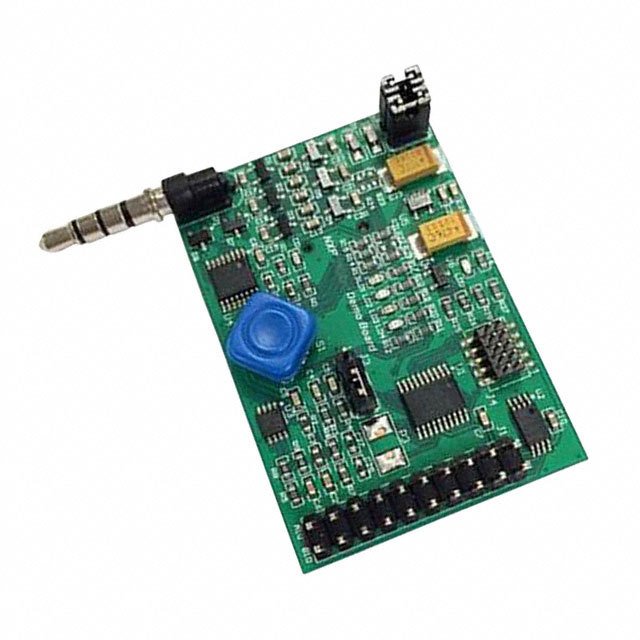

The Smartphone Quick-Jack solution includes a small PCB with an LPC812 microcontroller, an energy harvesting IC, a miniature joystick and an expansion header. The LPC812 is an ARM, Cortex-M0+ microcontroller which manage the data transport, encoding/decoding data using the Manchester algorithm to be exchanged over the audio channels. The board"s expansion header makes it easy connect myriad sensors such as temperature, humidity, wind, heart rate, accelerometer etc, switches lights, power etc, HMI devices such as keyboards, game controllers etc or other devices that collect or log data from a variety of sources. An energy harvesting circuit utilizes the right audio channel to draw power from the smart device to power the Quick-Jack board and attached sensors. The onboard joystick can be used to demonstrate a UI implementation and results are displayed by an App on the connected smartphone or tablet.
- .
- Header for connecting external debug probe to enable code development
- .
- I/O devices such as joystick, thermometer and LEDs
- .
- 3.5mm male stereo plus microphone audio jack
- .
- Downloadable free applications for both iOS and Android
To download the sample App, please visit Google Play of the iPhone App Store and search for " Quick-Jack".
