OM13039,598

LPC1800 Microcontroller Evaluation Board 180MHz CPU 16.13Mb RAM 16KB/1Mb/4Mb/16Mb Flash/I2C EEPROM/NOR Flash/SPI Flash

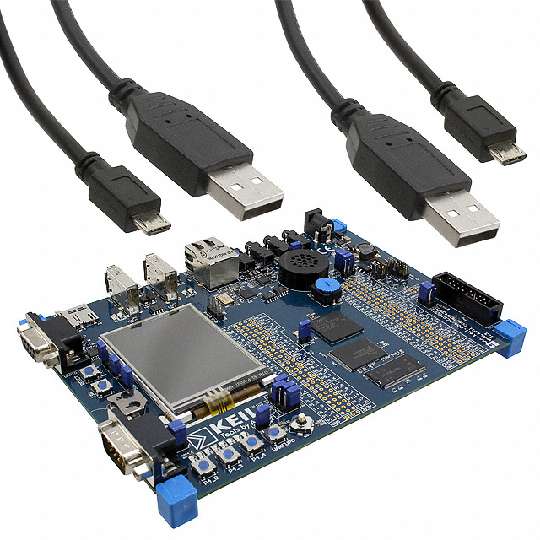

is a Keil MCB1857 evaluation board which enables to create and test working programs based on the LPC1800 family of ARM Cortex-M3 based devices. The MCB1857 evaluation board and starter kit includes the MDK-ARM Lite edition tools. These tools help user to get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB1857 evaluation board, and a quickstart guide are included. Populated with LPC1857 ARM Cortex-M3 based microcontrollers for embedded applications. The ARM Cortex-M3 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration.

.

180MHz ARM Cortex-M3 processor based LPC1857 MCU in LBGA256

.

Colour QVGA TFT LCD with touchscreen

.

10/100 Ethernet port

.

High speed USB 2.0 Host/Device/OTG interface USB host + Micro USB Device/OTG connectors

.

Full speed USB 2.0 Host/Device interface USB host + micro USB Device connectors

.

CAN interfaces, digital temperature sensor I2C

.

Serial/UART port, microSD card interface

.

Analog voltage control for ACD input

.

Audio CODEC with line in/out and microphone/headphone connector & speaker

.

Debug interface connectors
