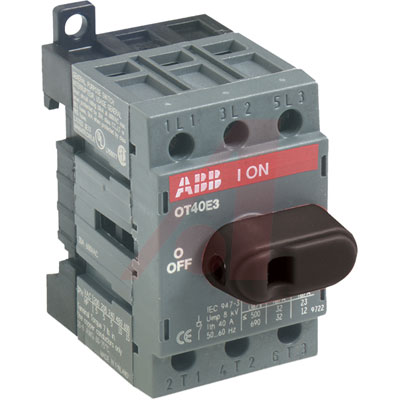

OT40F3

Disconnect Switch, 3P, 40A/600V, Non-Fusible, UL508 Listed, Open, Switch Only - Less Operating Mech

The is a 3-pole front operated non-fusible Disconnector Switch with screw terminal. The switch-disconnector is largely used as the main switch in low voltage switchgears for distribution of power, starting and stopping motors and isolating loads during maintenance. They are also enclosed in metal or plastic boxes as safety switches to ensure that accidental start of machines is prevented. The range from 16 to 160A either base plate or door mounted by snap-on or screw fitting. The switch-disconnectors also called load break switches.

.

8kV rated impulse withstand voltage

.

DIN rail mounting

.

NEMA 1, NEMA 12, NEMA 3R, NEMA 4, NEMA 4X rating
