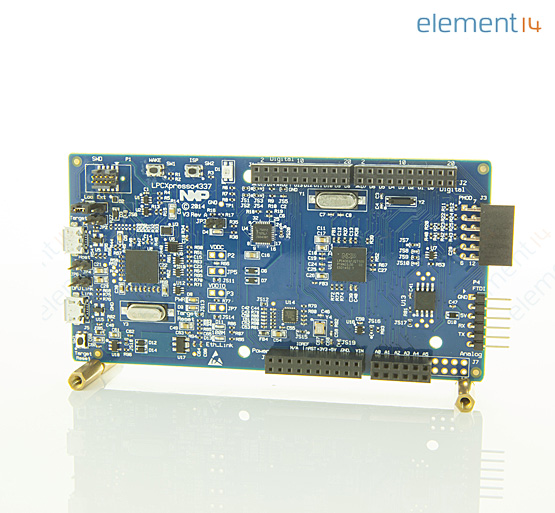

NXP OM13073 Development Board, Dual-Core LPCXpresso, Cortex-M0, Cortex-M4F, 204MHz Dual Core CPU
* LPC43S37 MCU runs up to 204MHz
-
.
-
On-board high-speed USB based debug probe ext probe support
-
.
-
Tri-color LED
-
.
-
Target Reset, ISP and WAKE buttons
-
.
-
Expansion options based on Arduino UNO R3 and Pmod, plus additional expansion port pins
-
.
-
On-board 1.8/3.3V or external power supply options
-
.
-
On-board Ethernet PHY output available at expansion connectors
-
.
-
High speed USB A/B connector for host or slave operation
-
.
-
8Mb Macronix quad SPI flash
-
.
-
UART, I2C and SPI port
