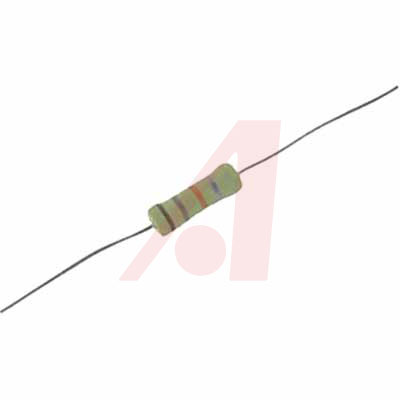

OX822KE

陶瓷电阻 8.2kΩ ±10% 1W

**Specifications**

**Material Terminals:** Solder-coated copper terminal. **Coating:** UL-94 VO approved silicone. **Derating Linear:** From 100% @ +70°C to 0% @ +200°C. **Electrical Tolerance:** ±10% standard. **Power Rating:** Based on 70°C free air rating. **Temperature Coefficient:** –1300 ±300 ppm/°C.

**Features**

* Replaces 1 and 2 Watt Carbon Composition Resistors

* Meets High-Energy Density Demands

* High Peak Power

* 10% Tolerance

得捷:
RES 8.2K OHM 10% 1W AXIAL

立创商城:
陶瓷电阻 8.2kΩ ±10% 1W

Allied Electronics:
Resistor; Ceramic Composition; Res 8.2 Kilohms; Pwr-Rtg 1 W; Tol 10%; Axial; Silicone

Chip1Stop:
Res Ceramic Composition 8.2K Ohm 10% 1W -1600ppm/ C to 1000ppm/ C Conformal AXL

Newark:
# OHMITE  OX822KE  Through Hole Resistor, Ceramic, 8.2 kohm, 300 V, Axial Leaded, 1 W, ± 10%, OX Series

MASTER:
Res Ceramic Composition 8.2K Ohm 10% 1W -1600ppm/°C to -1000ppm/°C Silicone AXL

Electro Sonic:
Res Ceramic Composition 8.2K Ohm 10% 1W -1600ppm/°C to -1000ppm/°C Silicone AXL
